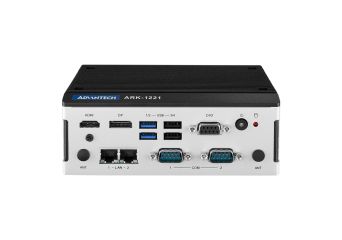

ARK-1221L

Intel Atom x6413E QC SoC with GbE, COM, USB, HDMI/DP and DIO ports DIN-Rail Fanless Box PC

Producător: Advantech

Intel Atom® x6413E Quad Core SoC turbo burst up to 3.0 GHz
DIN-Rail system with essential I/O ports on front-side bezel
2 x Intel GbE and 2 x RS-232/422/485
Dual independent displays with one 4K HDMI and one 4K DP
2 x USB 3.2 and 2 x USB 2.0, 1 x internal USB2.0 for security dongle
1 x M.2 2280 B key with nano SIM holder and 1 x M.2 2230 E key, 1 x full-size mPCIe
mSATA and 1 x 2.5" SATA storage device
12V ~ 28V wide range power input, -40 ~ 60 °C extended operating temperature
No RED Certification

În livrare

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

ARK-1221L

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
ARK-1221L-S5A1 Intel Atom x6413E QC 1.5G HDMI+DP+2GbE+2COM	În livrare	Garanție:		3.610,00 RON 4.440,30 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

ARK-1221L-S5A1

Intel Atom x6413E QC 1.5G HDMI+DP+2*GbE+2*COM

Disponibilitate: În livrare

Preț net:

3.610,00 RON

Intră în cont pentru a vedea prețurile

Descriere

Intel Atom x6413E QC SoC with GbE, COM, USB, HDMI/DP and DIO ports DIN-Rail Fanless Box PC

Specificație tehnică

Part Number	ARK-1221L-S5A1
Processor
CPU	Intel AtomTM x6413E
Frequency	1.5GHz
Core Number	4
BIOS	AMI EFI 256Mbit
Memory
Technology	DDR4 3200MHz
Max .Capacity	32GB
Socket	2x 260-pin SO -DIMM
Graphics
HDMI	HDMI 1.4afor HD video playback ,4096x 2160@24Hz
DP	1x DP 1.4a:4096x2160@60Hz
Dual Display	HDMI +DP
Ethernet
LAN1	10/100/1000Mbps GigaLAN Controller ,Supports Wake On LAN
LAN2	10/100/1000Mbps GigaLAN Controller ,Supports Wake On LAN
Audio
Interface	Realtek ALC888S ,High Definition Audio ,Line -out ,Mic -in
I/O Interface
Serial Port	2x RS -232/422/485ports (support auto flow control ,BIOS selectable )
GPIO	8bit GPIO
USB	2x USB3.2 ,2x USB2.0 ,1x internal USB2.0 for security dongle
Optional I /O	1x CANBus 2.0(DB9 connector )
Expansion
Mini PCI Express	1x Full -size
M.2	1x M2 .2230E key and 1x M.2 2280B key with nano SIM holder
Storage
2.5"HDD /SSD	1x 2.5"SATAIII Drive bay (compatible with 15mmheight )
mSATA	1x Full -size (support either mSATA or miniPCle )
Other
Watchdog Timer	255levels timer interval ,setup by software
Software Support
Microsoft Windows	Windows 10Enterprice
Linux	Support by project
Operating System
Ubuntu	V
Power Requirement
Power Type	AT /ATX
Input Voltage	12~28VDC
Power Adapter	AC to DC 24V/2.5A60W(Optional)
Mechanical
Construction	Aluminum housing
Mounting	DIN -rail /Wall Mount
Dimensions	60x 158x 114mm (2.34"x 6.22"x 4.49")
Weight	1.5kg (3.3lb)
Environment
Temperature (Operating )	-40-60°C
Temperature (Storage )	-40~85°C (-40-185°F )
Relative Humidity	95%@40°C (non -condensing )
Vibration during Operation	With SSD :3Grms ,IEC 60068-2-64,random ,5-500Hz ,1hr /axis
Shock Protection	With SSD /mSATA :30G
Certifications
Safety	CB ,UL ,CCC ,BSMI
EMC	CE ,FCC Class B ,CCC ,BSMI
Others
TPM	TPM 2.0(by optional AMO -1029)
Power Consumption
Typical	9.6W(OS idle mode )
Maximum	18.96W(Full loading )
