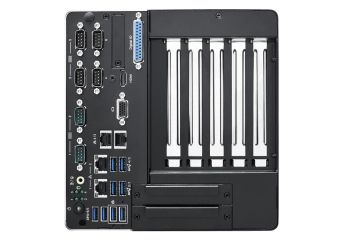

ARK-3532D

Intel® 10th Gen Xeon® W / Core™ i LGA1200 Expansion Fanless Box PC

Producător: Advantech

Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
Triple independent display: VGA + HDMI + Optional Display
DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
12-36VDC wide range power input
Up to 4sets 2.5" hard drive bays, support Intel® SW RAID
Support 4GbE, 8USB, 6COM, 16bit DIO,
No RED Certification

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

ARK-3532D

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
ARK-3532D-00A1 Intel CML W480E PCIex4+PCIex16+2*PCI, 12-36V	Out of stock	Garanție:		5.691,00 RON 6.999,93 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

ARK-3532D-00A1

Intel CML W480E PCIex4+PCIex16+2*PCI, 12-36V

Disponibilitate: Out of stock

Preț net:

5.691,00 RON

Intră în cont pentru a vedea prețurile

Descriere

Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor Triple independent display: VGA + HDMI + Optional Display DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB 12-36VDC wide range power input Up to 4sets 2.5" hard drive bays, support Intel® SW RAID Support 4GbE, 8USB, 6COM, 16bit DIO.

Specificație tehnică

Part Number	ARK-3532D-00A1
Processor
CPU	Intel Xeon W -1290TE/Intel Core i9 10900E/Intel Core i7 10700E/Intel Core i5 10500E/Intel Core i3 10
L3 Cache	20MB/20MB/16MB/12MB/6MB/2MB
Core Number	10/10/8/6/4/2
Chipset	W480E
Memory
Technology	DDR4 2933MHzSO -SIMM
Max .Capacity	64GB
Socket	2x 260pin SO -DIMM
Graphics
Chipset	Intel UHD Graphics 630
Graphic Engine	Direct x 12,OpenGL 4.4,HW Encode :H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,JPEG /MJPEG and VP8 ,HW DeMPEG -2,VC -1/WMV9 ,JPEG /MJPEG ,VP8 and VP9
Display
VGA	1920x 1200at 60Hz
HDMI	1
Triple Display	Yes
Ethernet
LAN	10/100/1000Mbps
Other
Watchdog Timer	255levels timer interval ,setup by software
Expansion
Mini PCle	1x Full -size Mini PCle (1x support mSATA ,1x support SIM holder )#1
M.2	1x M.2 2230E key for WIFI module
PCI Express x 4	1
PCI Express x 16	PCI -E x16 graphics card slot
PCI	2
Storage
HDD	HDD 2x 2.5"SATAIII 15mmheight HDD bay support Intel SW RAID (Up to 4x 2.5"SATAIII HDD bays by option
mSATA	mSATA 1x mSATA socket (Share with Mini PCle )
Software Development Kit
Operating System	Windows 10(64bit)
Linux	by Project support
Power Requirement
Power Type	AT /ATX
Voltage	9-36VDC in
Power Consumption
Typical	30W
Max	64.8W
Regulation
EMC	CE /FCC Class B ,CCC ,BSMI
Safety	CB ,UL ,CCC ,BSMI
Environment
Operational Temperature	With extended temp peripherals :-20~60°C with 0.7m/s air flow ,with HDD :0~40°C with 0.7m/s air flow
Temperature (Storage )	-40~85°C (-40-185°F )
Relative Humidity	95%@40°C (non -condensing )
Vibration during Operation	With mSATA /SSD :3Grms ,IEC 60068-2-64,random ,5~500Hz ,1hr /axis
Shock Protection	With CompactFlash disk :30Grms,IEC 60068-2-27,half sine ,11ms duration
Humidity	Operating :40°C @95%relative humidity ,non -condensing
