BB-485OPDRI-PH

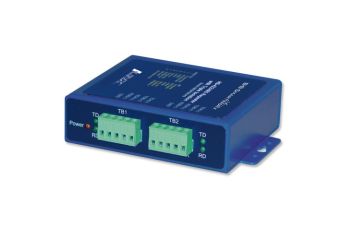

Model BB-485OPDRI-PH is a premium, heavy industrial RS-422/485 isolated repeater. Designed for rugged industrial environments, it meets some of the most exacting compliance tests in the industry. IEC 61850-3 and IEEE 1613 rated, it is suitable for installation in electrical substations. (These specifications are more stringent than NEMA TS1/TS2 requirements for transportation applications). Powerful isolation on both data ports protects your equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection. Packaged in a rugged IP30 metal case, it extends full or half-duplex RS-422/485 signals an additional 4000 feet and allows you to add another 32 nodes to your network. Bit-wise enabled circuitry automatically detects the data rate without setting a DIP switch. 10-48 VDC power is externally sourced (power supply required, not included, sold separately).

• RS-422/485 Repeator
• 2kV, 3-way isolation (input/output/power)
• Data rates:1.2 to 115.2 Kbps
• Wide operating temperature range: -40 to +85 °C
• IEC-61850-3, IEEE-1613, NEMA TS2, FCC, CE
• 10 to 48 VDC input power (power supply required, sold separately)
