BB-HESP

Serial Surge Protector, RS-422/485 Data Line, 3 Stage

Producător: Advantech
Producător: Advantech
  • Three stages of protection on every data line: 1)Gas discharge tube, 2)Series resistor, 3)Transient voltage suppressor
  • Protected signal ground connection
  • Three Postion Terminal Block
  • Dedicated chassis ground lug
Preț de la 500,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele

Descriere

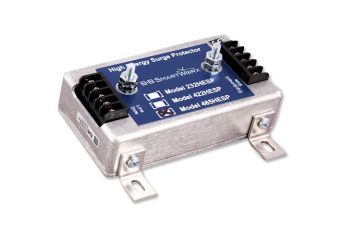

Model BB-HESP is a three-stage surge protector that protects against lightning strikes and other types of voltage disturbances with three stages of protection for each line: a gas discharge tube followed by a series resistor and finally a Transient Voltage Suppresser (TVS). The surge protector is housed in a tough metal, panel mount case with a protected signal ground connection and dedicated chassis ground lug.In order to work properly, it is important to have a good connection between the #10 screws and a solid earth ground. Two terminal posts and two metal mounting brackets provide a good ground connection.

  • Three stages of protection on every data line: 1)Gas discharge tube, 2)Series resistor, 3)Transient voltage suppressor
  • Protected signal ground connection
  • Three Postion Terminal Block
  • Dedicated chassis ground lug
