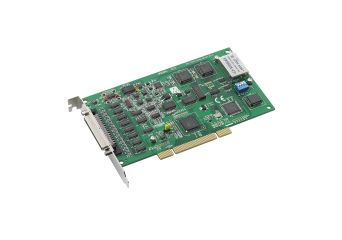

PCI-1747U

250 kS/s, 16-bit, 64-ch Analog Input Universal PCI Card

Producător: Advantech
Producător: Advantech
  • 64-ch single-ended or 32-ch differential or a combination of analog input
  • 16-bit A/D converter, with up to 250 kHz sampling rate
  • Auto calibration
  • Onboard FIFO memory (1,024 samples)
  • PCI-Bus mastering data transfer
  • Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
  • BoardID™ switch
Preț de la 3.832,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

PCI-1747U is a high-resolution, high-channel-count analog input card for the PCI bus. Its sampling rate is up to 250 kS/s and 16-bit resolution provides the resolution needed for most data acquisition applications. PCI-1747U provides 64 single-ended, 32 differential analog input channels or a combination of these. It also has built in a 1,024 FIFO buffer for analog input data.

  • 64-ch single-ended or 32-ch differential or a combination of analog input
  • 16-bit A/D converter, with up to 250 kHz sampling rate
  • Auto calibration
  • Onboard FIFO memory (1,024 samples)
  • PCI-Bus mastering data transfer
  • Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
  • BoardID™ switch
