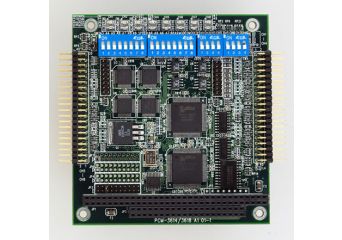

PCM-3618

8-port RS-422/485 High-Speed PC/104 Module

Producător: Advantech
Producător: Advantech
  • Eight independent RS-422/485 serial ports
  • Automatic RS-485 data flow control
  • Transmission speeds up to 921.6 Kbps
  • Shared IRQ settings for each port
  • Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
  • Built-in termination resistors
  • LED indicators: TX, RX
  • Standard PC ports: COM1, COM2, COM3, COM4 compatible
Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere

The PCM-3618 is a PC/104-compatible module with eight individually configurable RS-422/485 ports. It works with PC/104 CPU modules to extend additional RS-2422/485 ports. The PCM-3618 also features lots of functions such as high transmission speed of 921.6 kbps, shared IRQ and more. It also provides high-performance 16C550 UART communication chip with 16-byte FIFO to reduce CPU load. This makes the PCM-3618 especially suitable for multitasking environments.

  • Eight independent RS-422/485 serial ports
  • Automatic RS-485 data flow control
  • Transmission speeds up to 921.6 Kbps
  • Shared IRQ settings for each port
  • Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
  • Built-in termination resistors
  • LED indicators: TX, RX
  • Standard PC ports: COM1, COM2, COM3, COM4 compatible
