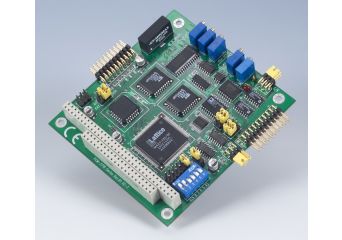

PCM-3718HO

100 kS/s, 12-bit, 16-ch Multifunction PC/104 Module with Analog Output

Producător: Advantech

12-bit A/D converter, up to 100 KHz sampling rate with DMA transfer
16-ch digital input/output TTL level channels and 1-ch 16-bit counter
1-ch analog output with 12-bit resolution
16-ch single-ended or 8-ch differential analog inputs

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere
Produse recomandate

PCM-3718HO

Descriere

PCM-3718HO is a fully multifunctional card with PC/104 interface, 16 analog inputs, one analog output, two 8-bit digital I/O channels, and a free counter function. Such a broad range of functions available in a single PC/104 card is a significant breakthrough, and will be appreciated by embedded systems developers with demanding space requirements. Using the compact PC/104 form factor, the card enables better integration and can be fitted in smaller systems such as embedded industrial PC like UNO-2170 or UNO-2171.
