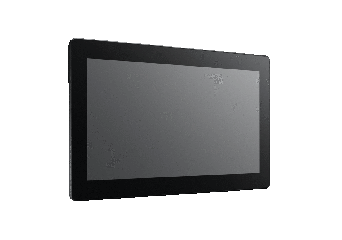

UTC-315H

15.6" All-in-One Touch Computer with Intel® Core™ i5-8365UE/Core™ i3-8145UE

Producător: Advantech

Low power and fanless system design
Embedded Intel® Core™ i5-8365UE
Built-in 8 GB RAM
15.6" monitor with 16:9 widescreen display
IP65-rated front panel for water and dust resistance
Supports both landscape and portrait screen orientations
VESA 75 mm standard mounting holes for varied mounting demands
Detachable frame design for panel mount applications
Support TPM 2.0
Power supply included
No disk and operating system included

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

UTC-315H

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
UTC-315HP-ATB0E 15.6" Pcap,i5-8365UE,FHD 220nits,8G,Black	Out of stock	Garanție:		11.716,00 RON 14.410,68 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

UTC-315HP-ATB0E

15.6" Pcap,i5-8365UE,FHD 220nits,8G,Black

Disponibilitate: Out of stock

Preț net:

11.716,00 RON

Intră în cont pentru a vedea prețurile

Descriere

UTC-315H is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.

Specificație tehnică

	UTC-315HR-ATW0E	UTC-315HR-ATB0E	UTC-315HP-ATW0E
System
CPU	Intel® Pentium® N4200 (Default) / Intel® Celeron® N3350 (Available)
RAM	1 x SO-DIMM DDR3L 1866 MHz up to 8GB
Storage	1 x 2.5 internal SATA HDD bay
Network (LAN)	2 x Gigabit Ethernet (RJ-45)
I/O	1 x COM (RS-232); 1 x COM (RS-232/422/485) 2 x USB 2.0; 4 x USB 3.0 1 x HDMI 1 x Line-out, 1 x Mic-in 2 x 2W Speaker
Expansion	M.2 2230/mSATA
OS Support
OS support	WES 7P 32bit WES 7E 32bit Windows Pro Embedded 7 SP1 64bit WE8S 64bit Windows Embedded 8.1 Industry Pro 64bit Win 10 IoT Enterprise 64bit Linux Android 6.0
Power Supply
Input Voltage	12 V/7 A (84W ITE Adapter)*Optional 12-30V
LCD
Resolution	1920 x 1080
Brightness (cd/m²)	250 cd/m² (optional 400 nits)
Touch Screen
Type	Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel
Controller	USB interface
Environment
Operating Temperature	0 - 40°C
Relative Humidity	10 - 95% @ 40 °C (non-condensing)
Shock	10 G peak acceleration (11 msec. duration)
Vibration	0,5 G
Front Panel Protection	IP65/ NEMA4 Compliant
