AB4080

Name: AB4080
Brand: Anybus
SKU: 82685

Anybus S Modbus Plus

Producător: Anybus

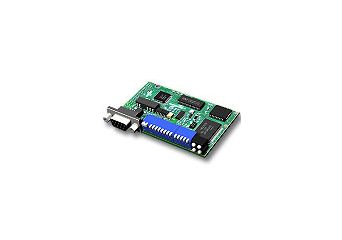

AB4080 Anybus-S Modbus Plus

Multi Master system and peer-to-peer capabilities
Max 1025 (16-bits) words of input and output data
Baud rate 1Mbit/s
RS485 optically isolated ModBus Plus interface
Configuration of node ID and source ID via DIP switches
9-pin DSUB connector (other connectors available)
CE, UL & cUL Tested

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Produse recomandate

AB4080

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
AB4080 S-Modbus Plus	Out of stock	Garanție:		0,00 RON -	-

AB4080

S-Modbus Plus

Disponibilitate: Out of stock

Preț net:

Descriere

The Anybus-S Modbus Plus module is a small interface card that can be read and written from another Modbus Plus device or controller. The maximum amount of data that can be handled by the module is 2kbytes of input data and 2kbytes of output data. The module is connected via the application connector. Via this connector the application receives and instant connection to the Modbus Plus network. The Anybus-S Modbus Plus module supports global database transaction. The dynamic mailbox interface also provides the possibility to set the node ID, set the source ID (for global data) and also get/clear the network statistics

Specificație tehnică

Specyfikacja techniczna

Wymiary:	54 mm x 86 mm x 15 mm
Napięcie zasilania:	+5V max 250mA
Temperatura pracy:	0 to +70°C
Baud Rate:b	1 Mbit/s
I/O Input:	Max 1025 Word
I/O Output:	Max 1025 Word
Interfejs urządzenia:	Równoległy
