- Omnidirectional antena
- Frequency range: 2,412 - 2,497 GHz
- Gain: 18 dBi
- Horizontal polarization
- Connector: N/Female
- Mounting to mast
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
ExtraEter 18dBi
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareExtraEter 18dBi (2)omnidirectional 2.4GHz, 18dbi, N femaleOut of stock Garanție: 427,00 RON525,21 RONIntră în cont pentru a vedea prețurile ExtraEter 18dBi (2)omnidirectional 2.4GHz, 18dbi, N femaleDisponibilitate: Out of stockPreț net:427,00 RON
Descriere

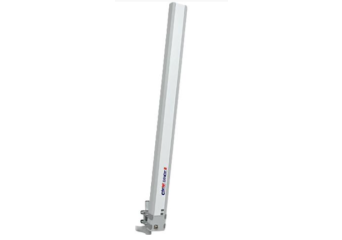

OD 24-18H antenna is predicted 2,4 GHz frequency for base stations. Antenna works at the horizontal polarization and has 18 dBi gain. At present it is one of the most high-gain omnidirectional antennas, which are available on the market. OD 24-18H omnidirectional antenna can cover area up to 15 km.
The omni antenna of OD 24-18H is made of aluminium waveguide, with cut-set dimensions of 50x100mm, which allows for the 360 degrees cover (with the full antenna gain). The antenna has 32 slots. Using gold plated elements allows for strong, constant signal and failure free operation for long time. OD 24-18H antenna comes with N Female connector and it's equipped with stainless and robust mast mount bracket, which allows downtilt of 15 degrees.
Specificație tehnică
| Antenna type | omnidirectional |
| Frequency range | 2,412 - 2,497 GHz |
| Gain | 18 dBi |
| Polarization | horizontal |
| Back ratio | n/a dB |
| Vertical beam width | 6 ° for -3dB |
| Horizontal beam width | 360 ° for -3dB |
| VSWR | 1 : 1,8 |
| Impedance | 50 Ohm |
| Connector | N/Female |
| Wind load | 56 m/s |
| Mounting | to mast |
| The diameter of the mast / pole | 30 - 50 mm |
| Dimensions | 1450 x 100 x 50 mm |
| Package dimension | 148/15/9 cm |
| Total weight | 5000 g |
| Weight with mounting | 4400 g |
| Weight without mounting | 3250 g |
| Warranty | 60 months |
