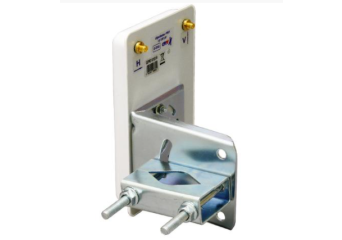

GigaSektor PRO 14/90 HV
Professional sector antenna with 14 dBi gain, 2 x RP-SMA
- Sector antenna
- Polarization: vertical + horizontal
- Frequency range: 4,9 - 6,1 GHz
- Gain 13 dBi
- Connectors: 2 x RP-SMA
- Mounting: to mast
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
GigaSektor PRO 14/90 HV
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareGigaSektor PRO 14/90 HV (7078)Sector 120, 14dbi, MIMO 5GhzOut of stock Garanție: 270,00 RON332,10 RONIntră în cont pentru a vedea prețurile GigaSektor PRO 14/90 HV (7078)Sector 120, 14dbi, MIMO 5GhzDisponibilitate: Out of stockPreț net:270,00 RON
Descriere
Professional, high-performance , very small sector antenna utilizing advanced point-to-multipoint wireless networking solutions.
Reduced undesired back-light and low side-lobe levels minimize the level of noise generated and received by the antenna from the environment, allowing it to be mounted and efficiently operated in the immediate vicinity of other antennas.
The antenna can operate over a wide frequency range and the beam of radiation characteristics are stable as a function of frequency. This allows for flexible and predictable operation and full use of the radio module capability connected to the antenna.
The dimensions and weight of the antenna have been reduced and the optional mounting brackets and external components are available. The connectors allow direct integration of the antenna with Ubiquiti, Mikrotik and Cambium. This allows for convenient creation of compact and discrete base stations.
The antenna has a redundant DC short-circuit preventing the DC current from being induced at the antenna output while protecting the device connected to the antenna during lightning discharges.
Specificație tehnică
| Antenna type | sector |
| Frequency range | 4,9 - 6,1 GHz |
| Gain | 14 dBi |
| Polarization | vertical + horizontal |
| Separation between connectors | >28 dB |
| Vertical beam width | 12 ° for -3dB |
| Horizontal beam width | 70±5° for -3dB, 90±5° for -6dB ° |
| VSWR | typ. 1:1,5 |
| Impedance | 50 Ohm |
| Connector | 2 x RP-SMA |
| Wind load | 56 m/s |
| Mounting | pole mounting |
| The diameter of the mast / pole | 28 - 72 mm |
| Dimensions | 182 x 105 x 25 mm |
| Package dimension | 35/12/9 cm |
| Total weight | 950 g |
| Weight with mounting | 850 g |
| Weight without mounting | 365 g |
| Warranty | 36 months |
