GrandEter 11 V
Professional omnidirectional antenna designed to build 5GHz base stations operating in vertical polarization, 11 dBi gain.
Producător: Cyberbajt
Producător: Cyberbajt
- Omnidirectional antenna
- Frequency range: 5,1 - 5,8 GHz
- Gain: 11 dBi
- Vertical polarization
- Connector: N/Female
- Mounting: to mast
Preț de la 162,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
GrandEter 11 V
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareGrandEter 11 V (2145)omnidirectional 5GHz 11dbi, N femaleÎn stocGaranție: 162,00 RON199,26 RONIntră în cont pentru a vedea prețurile GrandEter 11 V (2145)omnidirectional 5GHz 11dbi, N femaleDisponibilitate:În stocPreț net:162,00 RON
Descriere

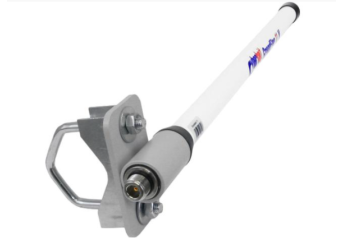

The 5GHz Omni Directional antenna systems are constructed of UV-stable fiberglass. The antenna comes with an integral N Female connector and is designed to be pole mount only. The material used for a construction make it lightweight and resistant for outdoor conditions.
The antenna provides with 360 degrees at the beam width in the horizontal plane, it's cost effective base station antenna. OD 56-11V comes with N Female connector in standard, it's equipped with the stainless mast mount bracket.
Specificație tehnică
| Antenna type | omnidirectional |
| Frequency range | 5,1 - 5,8 GHz |
| Gain | 11,3 dBi |
| Polarization | vertical |
| Back ratio | n/a dB |
| Vertical beam width | 8 ° for -3dB |
| Horizontal beam width | 360 ° for -3dB |
| VSWR | 1 : 1,7 |
| Impedance | 50 Ohm |
| Connector | N/Female |
| Wind load | 56 m/s |
| Mounting | to mast |
| The diameter of the mast / pole | 38 - 51 mm |
| Dimensions | 22 x 480 mm |
| Package dimension | 55/10/5 cm |
| Total weight | 480 g |
| Weight with mounting | 385 g |
| Weight without mounting | 244 g |
| Warranty | 36 months |
