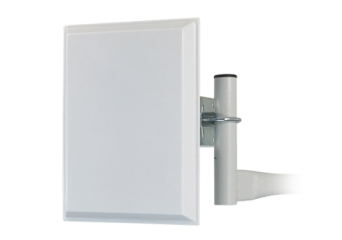

LineEter DUO 16dBi
PAN 24-16 HV is the dual polarity client antenna, designed for operation at the frequency of 2,4 GHz
- Dual polarity client antenna
- Gain 16 dBi
- Frequency range 2,4 GHz
- MIMO 2x2
- Connector 2x N/Female
- Mounting to mast
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
LineEter DUO 16dBi
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLineEter DUO 16dBi (3715)directional 2.4GHz, 16dbi, N femaleÎn stocGaranție: 196,00 RON241,08 RONIntră în cont pentru a vedea prețurile LineEter DUO 16dBi (3715)directional 2.4GHz, 16dbi, N femaleDisponibilitate:În stocPreț net:196,00 RON
Descriere
PAN 24-16 HV is the dual polarity client antenna, designed for operation at the frequency of 2,4 GHz. The antenna has gain of 16 dBi. It's predicted to be used for the MIMO (802.11n standard) links on the medium lenght distances.
The separation level between connectors is 30 dB. Medium antenna gain allows to set links on the medium distances. The fucused antenna radiation guarantees the good performances also in case of the connections on the short distances.
The microstrip technology has been used to design PAN 24-16 HV. The antenna board is located between a steel made back shield and low-loss durable front shield made from durable ABS plastic. It ensures the protection against bad weather conditions and ensures the performances stability during operation time.
To protect the radio equipment connected to the antenna, we equipped PAN 24-16HV with a DC ground.
Robust stainless brackets ensures strong resist against heavy wind and provides the possibility to tilt the antenna in two planes.
Specificație tehnică
| Antenna type | dual polarity panel |
| Frequency range | 2,4 - 2,5 GHz |
| Gain | 16 dBi |
| Polarization | vertical + horizontal |
| Vertical beam width | 25 ° |
| Horizontal beam width | 25 ° |
| VSWR | 1 : 1,4 |
| Impedance | 50 Ohm |
| Connector | 2 x N/Female |
| Wind load | 56 m/s |
| Mounting | to mast |
| The diameter of the mast / pole | 30 - 50 mm |
| Dimensions | 250 x 340 x 30 mm |
| Package dimension | 38/27/10 cm |
| Total weight | 1291 g |
| Weight with mounting | 1100 g |
| Weight without mounting | 692 g |
| Warranty | 36 months |
