Producător: Cyberbajt
- Omnicirectional antenna
- Frequency range: 2,4 - 2,5 GHz
- Vertical polatization
- Gain: 10 dBi
- Connector: 1xN/Female
- Pole mounting
Preț de la 177,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
ProEter 10dBi
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareProEter 10dBi (1)omnidirectional 2.4GHz, 10dbi, N femaleOut of stock Garanție: 177,00 RON217,71 RONIntră în cont pentru a vedea prețurile ProEter 10dBi (1)omnidirectional 2.4GHz, 10dbi, N femaleDisponibilitate: Out of stockPreț net:177,00 RON
Descriere

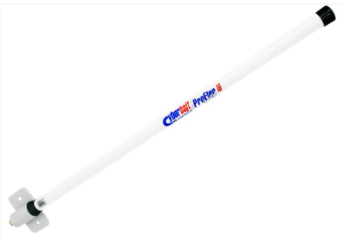

OD 24-10V is an omnidirectional antenna designed for the frequency of 2,4 GHz. OD 24-10V works in vertical polarization and has 10 dBi gain. It is meant as a basestation antenna. OD 24-10V can be used for connections on short distances when height of a location requires the wide vertical beamwidth. The device can be used inside and outside buildings. This new design is characterized by low weight and better stability, which we achieve thanks to using a new type of mounting. Antenna comes with N Female connector per standard, and is equipped with U-bolt for mast mounting.
Specificație tehnică
| Antenna type | omnidirectional |
| Frequency range | 2,4 - 2,5 GHz |
| Gain | 10 dBi |
| Polarization | vertical |
| Back ratio | n/a dB |
| Vertical beam width | 23 ° |
| Horizontal beam width | 360 ° |
| VSWR | 1 : 1,5 |
| Impedance | 50 Ohm |
| Connector | N/Female |
| Wind load | 56 m/s |
| Mounting | pole mounting |
| The diameter of the mast / pole | 26 - 53 mm |
| Dimensions | 675 x dia 22 mm |
| Package dimension | 75/10/5 cm |
| Total weight | 620 g |
| Weight with mounting | 512 g |
| Weight without mounting | 370 g |
| Warranty | 36 months |
