UniEter

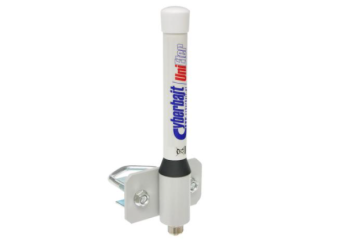

Two-band omnidirectional antenna for work in both 2.4GHz and 5GHz bands
- Omnidirectional
- Frequency range: 2,4–2,5 GHz; 5,15–5,90 GHz
- Vertical polarization
- Gain: 5 dBi
- Connector: N/Female
- Mounting: to the mast
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
UniEter
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUniEter (7518)omnidirectional 2,4, 5GHz 5dbi, N femaleÎn stocGaranție: 152,00 RON186,96 RONIntră în cont pentru a vedea prețurile UniEter (7518)omnidirectional 2,4, 5GHz 5dbi, N femaleDisponibilitate:În stocPreț net:152,00 RON
Descriere
Omnidirectional antenna designed for use in 2.4 and 5 GHz bands. Offers 5 dBi gain in both 2.4 GHz and 5 GHz bands.
It has very good electrical parameters and modern, lightweight and resistant construction. The use of the highest quality low-loss teflon laminate , based on the same material which the radiant heater is made, provides an ideal match for both 2.4 and 5 GHz frequency bands.
With a modest gain, the antenna allows you to build high-performance mid-range base stations, avoiding / minimizing distractions in locations with a large number of other wireless networks.
The array of radiators was additionally varnished and placed under the cover of a very durable and low-damping plastic. This protects the antenna against the effects of weather conditions and ensures durability and stability of parameters during operation.
The solid handling attached to the antenna provide stability and high wind resistance.
Specificație tehnică
| Antenna type | omnidirectional |
| Frequency range | 2,4–2,5 GHz; 5,15–5,90 GHz |
| Gain | 2,4 GHz: 5 dBi; 5 GHz: 5 dBi |
| Polarization | vertical |
| Back ratio | n/a dB |
| Vertical beam width | 2,4 GHz: 55 ° 5 GHz: 45 ° |
| Horizontal beam width | 360 ° |
| VSWR | 1 : 2 |
| Impedance | 50 Ohm |
| Connector | N/Female |
| Wind load | 56 m/s |
| Mounting | to the mast |
| The diameter of the mast / pole | 38 - 51 mm |
| Dimensions | 22 x 220 mm |
| Total weight | 368 g |
| Weight with mounting | 330 g |
| Weight without mounting | 188 g |
| Warranty | 36 months |
