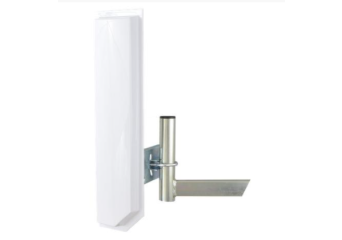

VH-Line Sektor Duo 14/120
Dual polarity sector antenna working at 2,4GHz frequency with the BOX integrated, 14 dBi, 120 degrees
- Double sector antenna
- Frequency range: 2,4 - 2,5 GHz
- Gain: 14 dBi
- Vertical + horizontal polarization
- 2x2 MIMO
- Connectors 2x N/Female
- Mounting to mast
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
VH-Line Sektor Duo 14/120
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareVH-Line Sektor Duo 14/120 (3679)Sector 120, 14dbi, MIMO 2x2, 2.4GhzOut of stock Garanție: 441,00 RON542,43 RONIntră în cont pentru a vedea prețurile VH-Line Sektor Duo 14/120 (3679)Sector 120, 14dbi, MIMO 2x2, 2.4GhzDisponibilitate: Out of stockPreț net:441,00 RON
Descriere
Dual polarity sector antenna working at 2,4GHz frequency with the BOX integrated, enabling for installation of RouterBoard 411, 433, 711, Alix, Ubiquiti boards inside. Antenna has a gain of 14dBi and 120 degrees radiation beam-width at the horizontal polarization. It’s designed for operation with a radio equipment working at the 802.11n standard with the 2x2 MIMO technology. Works fine with client devices equipped with dual polarity antennas, allowing for improving the link quality and the SNR level and obtaining the transmission rate of 300Mbps, also in the localizations with low multi-path level. Due to high factor of separation between connectors (>35 dB) allows for dual base station 2,4 GHz building (at 802.11b/g standard).
Specificație tehnică
| Antenna type | double sector |
| Frequency range | 2,4 - 2,5 GHz |
| Gain | 14 dBi |
| Polarization | vertical + horizontal |
| Separation between connectors | >35 dB |
| Vertical beam width | 17 ° for -3dB |
| Horizontal beam width | 120 ° for -3dB |
| VSWR | 1 : 1,4 |
| Impedance | 50 Ohm |
| Connector | 2 x N/Female |
| Wind load | 56 m/s |
| Mounting | to mast |
| The diameter of the mast / pole | 38 - 51 mm |
| Set content | antenna, mounting brackets, manual |
| Dimensions | 456 x 140 x 40 mm |
| Package dimension | 60/13,5/11 cm |
| Total weight | 1267 g |
| Weight with mounting | 1080 g |
| Weight without mounting | 682 g |
| Warranty | 36 months |
