Digital Discovery
Portable USB logic state analyzer and digital test pattern generator
Producător: Digilent
Producător: Digilent
- 32-channel digital logic state analyzer (1.2...3.3 V CMOS, 8 channels at 800 MS/s*, 16 channels at 400 MS/s* and 32 channels at 200 MS/s)
- Protocol analyzer (SPI, I²C, UART, CAN, AVR)
- 16-channel pattern generator (1.2...3.3 V CMOS, 100 MS/s)
- 4-channel programmable power supply 1.2...3.3 V /100 mA. The same voltage supplies the input buffers of the logic state analyzer and the input/output buffers of the pattern generator to maintain logic level compatibility with the circuit under test.
Preț de la 1.267,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Digital Discovery
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare410-338 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern GeneratorÎn stocGaranție: 1.267,00 RON1.558,41 RONIntră în cont pentru a vedea prețurile 410-338 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern GeneratorDisponibilitate:În stocPreț net:1.267,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare240-127 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern Generator and 16 Logic ProbesÎn stocGaranție: 1.450,00 RON1.783,50 RONIntră în cont pentru a vedea prețurile 240-127 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern Generator and 16 Logic ProbesDisponibilitate:În stocPreț net:1.450,00 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare410-349 High Speed Adapter&Logic ProbesDigital Discovery High Speed Adapter and Logic ProbesÎn stocGaranție: 282,00 RON346,86 RONIntră în cont pentru a vedea prețurile 410-349 High Speed Adapter&Logic ProbesDigital Discovery High Speed Adapter and Logic ProbesDisponibilitate:În stocPreț net:282,00 RON
Descriere

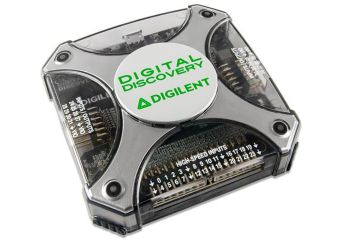

Digital Discovery™ is a device that combines a logic state analyzer with a protocol analysis function and a test pattern generator. It was developed for engineers testing various types of digital systems. Digital Discovery is supported by the free WaveForms software (3.5.4 or later) and can be configured as any of the following instruments:
- 24-channel digital logic state analyzer (1.2...3.3 V CMOS, up to 800 MS/s (with High Speed adapter))
- 16-channel pattern generator (1.2...3.3 V CMOS, 100 MS/s)
- 16-channel virtual digital I/O, including buttons, switches and LEDs - ideal for logic training applications
- Programmable 1.2...3.3V/100mA power supply. The same voltage supplies the input buffers of the logic state analyzer and the input/output buffers of the pattern generator to maintain logic level compatibility with the circuit under test.
- Digital bus analyzers (SPI, I²C, UART, I2S, CAN, parallel).
Video
Specificație tehnică
- Oprogramowanie
| Dołączone oprogramowanie | Bezpłatne oprogramowanie WaveForm |
- Analizator stanów logicznych
| Ilość kanałów | 24 |
| Częstotliwość próbkowania | 800 MS/s (z adapterem High Speed) |
| Pasmo | 100MHz+ |
| Zakres napięcia | 1,2 V do 3,3 V (kompatybilne z 5 V, gdy jest używane jako wejścia) |
| Bufor | 2Gbit DDR3 |
| Analizator magistrali | SPI, I²C, UART, CAN, I2S, równoległy i niestandardowy |
- Generator wzorów testowych
| Ilość kanałów | 16 |
| Częstotliwość próbkowania | 100 MS/s |
| Pasmo | 50MHz |
| Zakres napięcia | 1.2V do 3.3V |
| Wyjście magistrali | Liczniki i niestandardowe |
- Wielofunkcyjne cyfrowe wejścia/wyjścia
| Ilość kanałów | 16 |
| Częstotliwość próbkowania | 100 MS/s (maksymalna częstotliwość wyjściowa 50 MHz) |
| Zakres napięcia | 1,2 V do 3,3 V (kompatybilne z 5 V, gdy jest używane jako wejścia) |
| Bufor | Algorytmiczny generator wzorców (bez użycia buforów) |
- Analizator protokołów
| Ilość kanałów | 16-32 |
| Zakres napięcia | 1,2 V do 3,3 V (wejścia kompatybilne z 5 V) |
| Analizatory magistrali | UART: wysyłanie i odbieranie SPI: odczyt i zapis I2C: odczyt i zapis CAN: rx i tx |
- Programowalne zasilacze
| Zakres napięcia | 1,2V do 3,3V |
| Limit prądu | Maks. 100 mA dostępne w każdym z dwóch złączy MTE 2×6 |
- Edytor skryptów
| Obsługiwane instrumenty | wszystkie |
| Język | Javascript |
- Cross Triggering
| Obsługiwane instrumenty | Analizator stanów logicznych, generator wzorców |
- Dostarczony sprzęt
| 410-338 Digital Discovery |
|
| 240-127 Digital Discovery |
|

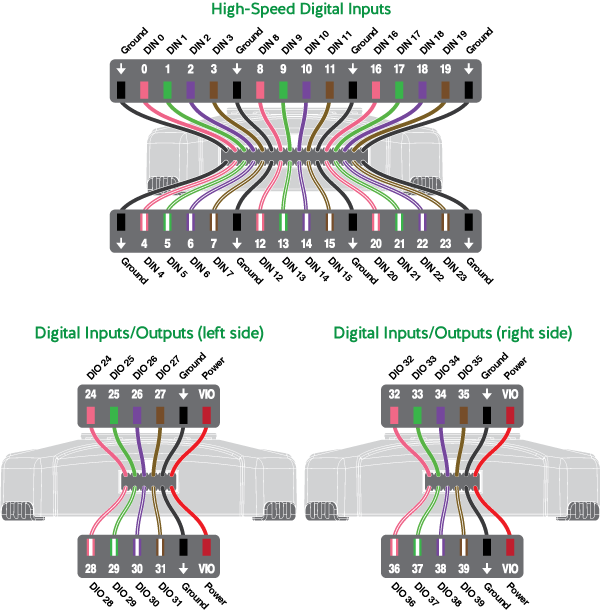

- Pinout
| Pinout |  |
