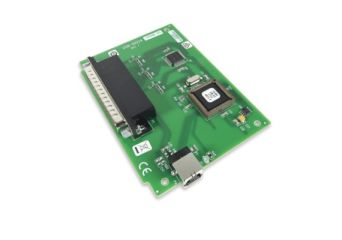

Seria USB-DIO24
USB digital I/O devices with 24 channels, 5.5 V input voltage, up to 64 mA sink and 15 mA source, and one 32-bit event counter.
- The 37-pin connector provides 24 digital I/O, one counter, six ground, and two power connections.
- The digital I/O port is configured as two 8-bit and two 4-bit ports based on an 82C55 mode 0 emulation. You
can configure each port independently for input (default) or output. - The CTR signal is the input to the 32-bit external event counter.
- USB-DIO24/37 digital type: 82C55
- USB-DIO24H/37 digital type: 74FCT244 (output), 74ACT373 (input)
- USB-DIO24/37 sink / source: 2.5mA
- USB-DIO24/37 sink / source: 64 mA / 15 mA
- 5.5 V max inout voltage
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Seria USB-DIO24
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUSB-DIO24/37USB-DIO24/37Out of stock Garanție: 838,00 RON1.030,74 RONIntră în cont pentru a vedea prețurile USB-DIO24/37USB-DIO24/37Disponibilitate: Out of stockPreț net:838,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUSB-DIO24H/37USB-DIO24H/37În stocGaranție: 1.103,00 RON1.356,69 RONIntră în cont pentru a vedea prețurile USB-DIO24H/37USB-DIO24H/37Disponibilitate:În stocPreț net:1.103,00 RON
Descriere
The USB-DIO24 Series of digital devices provide logic-level, bidirectional digital I/O and counter operation. Both devices feature 24 bits of digital I/O and one 32-bit external event counter. The devices are powered by the +5 volt USB supply. All I/O connections are made to a 37-pin connector. Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.
