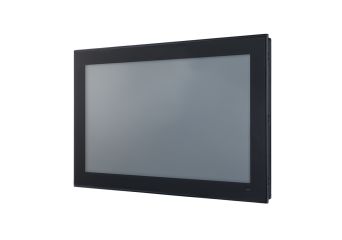

ELMATIC DELTA 321W EHL

Fanless 21.5” Panel PC, Intel Celeron J6412, 8GB RAM, 256GB SSD, Windows 11 IoT

  • Compact , fanless design with solid aluminum alloy enclosure
  • Projected Capacitive Touchscreen
  • IP66-rated front panel
  • 2x 2.5 GbE LAN
  • 1x RS-232, 1x RS-232/422/485
  • 2x USB 2.0, 2x USB 3.1
  • 1x HDMI
  • No power supply by default (see accessories)
Preț de la 10.666,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
ELMATIC DELTA 321W EHL

ELMATIC DELTA 321W EHL

Modele

Accesorii

Descriere

The ELMATIC DELTA 321W EHL is a fanless panel computer featuring a 21.5-inch touchscreen display with Full HD resolution (1920x1080 pixels), housed in a compact die-cast aluminum enclosure. The front panel is rated at IP66, ensuring protection against dust and water. The device is powered by a quad-core Intel Celeron J6412 processor, supported by 8 GB of RAM and a 256 GB SSD, providing high performance and reliability for industrial applications.

The computer offers extensive connectivity options, including two 2.5 GbE LAN ports, one RS-232 port, one RS-232/422/485 port, two USB 2.0 ports, two USB 3.1 ports, and one HDMI output. Its fanless design minimizes the risk of mechanical failures, while the Windows 11 IoT operating system ensures compatibility with modern applications.

Specificație tehnică

Model
Model ELMATIC DELTA 321W EHL
CPU
CPU Intel Celeron J6412
Memory
Memory Built-in 8 GB SODDR4
Storage
Slot 2,5" HDD -
M.2 Built-in 256GB M.2 2280
Slot mSATA -
Expansions
Slot M.2 1 x M.2 2230 E-key for wireless card
Slot miniPCIe -
I/O
DisplayPort -
HDMI 1
Audio -
Gigabit Ethernet 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
USB 3.1 2
USB 2.0 2
Serial Ports 1 x RS-232
1 x RS-232/422/485 (Adjustable through BIOS)
GPIO -
CANbus -
TPM TPM 2.0
Operating System
Operating System Windows 11 IoT LTSC included
Environment
Working temperature -10 ~ 50°C
LCD
Display Type 21.5" TFT LCD (LED backlight)
Resolution 1920 x 1080
Luminance (cd/m2) 250
Contrast Ratio 1000
Touchscreen
Touch Type ELO Projected Capacitive Multi-touch
Controller USB interface
