RECOMANDAT
ELMATIC | EDS
Preț de la 784,00 RON Net
Dacă se plasează comanda până în ora 15:00, coletul va fi expediat în aceeași zi În stoc
|
NOTĂ: Sparrow NW10 este un produs cu condiții speciale de discount. De la prețul de lista are doar 3% discount pentru plățile prin proforma/online + încă o reducere de 3% pentru achiziția din magazinul nostru online. |
RECOMANDAT
Producător: Elmatic
- Baudrate up to 115200 bps
- Dual SIM
- 4G LTE/3G/GPRS
- Input voltage range from 9 to 36 VDC
- Dimensions: 82,8 mm x 90 mm x 28,8 mm
- Installation on DIN rail
- Aluminium housing
- IP30 protection
Preț de la 625,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleModele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareElmatic SPARROW NW10Industrial Cellular Router, LTE, 2xSIM, Ethernet, serial interface 1 x RS-232 (3 PIN) + 1 x RS-485, DIN rail mounting, AC adapter and antennas includedRECOMANDAT
În stocGaranție: 625,00 RON768,75 RONIntră în cont pentru a vedea prețurile Elmatic SPARROW NW10Industrial Cellular Router, LTE, 2xSIM, Ethernet, serial interface 1 x RS-232 (3 PIN) + 1 x RS-485, DIN rail mounting, AC adapter and antennas includedRECOMANDAT
Disponibilitate:În stocPreț net:625,00 RON
Descriere

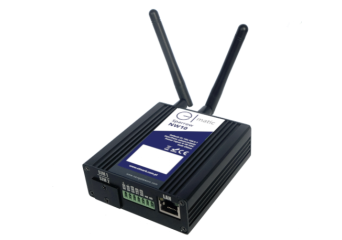

Sparrow NW10 is an industrial LTE router with Wi-Fi and VPN support at a smart price. As for interfaces, it has Ethernet, RS-232, RS-485, 2 SIM card slots and 2 antenna connectors.
Sparrow NW10 offers a lot of features known from more expensive models, like "Connection Manager" that controls connection status, VLANs, ACLs, Port Forwarding (NAT), DMZ, static routing, IP Passtrought, DDNS, SMS control, scheduled restart, GRE, and OpenVPN.
The aluminum design and simple construction make the Sparrow NW10 a robust and reliable device for industrial environments.
Applications for Elmatic Sparrow NW10 LTE Router
The functionality of the Sparrow NW10 router can be enhanced with dedicated extensions (applications). Below is the list of available ones:
AT over COM - An application that allows you to send AT commands to the router via the serial port.
AT over IP - Application sends AT commands to router via TCP/IP protocol.
AT over telnet - Allows you to send AT commands to the router via Telnet protocol.
DMVPN - Adds support for Dynamic Multipoint VPN (Cisco)
Dynamic Routing - Adds support for RIP, OSPF and BGP routing protocols.
IPsec - Adds IPsec technology for creating virtual private networks (VPNs)
L2TP - Adds support for L2TP protocol, or OSI Layer 2 tunneling.
PPTP - Adds support for PPTP protocol, a technology for creating virtual private networks.
SMS Gateway - Adds the ability to send SMS via predefined commands sent to the router's serial port.
VRRP - Adds support for Virtual Router Redundancy Protocol (VRRP).
The above applications can be downloaded at the bottom of this page, in the "Downloads" section.
Specificație tehnică
| Mobile interface | |
| Supported bands | LTE FDD : B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28 / B28A LTE TDD: B40 WCDMA: B1 / B2 / B5 / B8 GSM: B2 / B3 / B5 / B8 |
| SIM | 2 x socket SIM 1,8 V / 3 V. |
| SIM failover | Conditions for automatic changeover: low signal, limited data transfer, network access denied, SMS |
| APN | Automatic completion APN |
| Controlling the amount of transferred data | Set up custom data limits for both cards SIM |
| Antennas aamount | 2 (MAIN + AUX) |
| Connector | SMA female |
| Ethernet | |
| Ports number | 1 x LAN |
| Port type | Auto 10/100 Mbps auto MDI / MDIX |
| Magnetic insulation | 1,5 KV |
| Serial ports | |
| Ports number | 1 x RS-232 (3-pins) + 1 x RS-485 |
| Connector | Terminals |
| ESD Protection | ± 15 KV |
| Baudrate | 300 bps up to 115200 bps |
| Network | |
| Routing | Static routing |
| Dynamic Routing (optional) | RIPv1 / v2 OSPF BGP |
| Network protocols | TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP PPP PPPoE DHCP |
| Connection manager | Ping, Timer Reboot ICMP |
| DHCP | Static and dynamic IP address allocation |
| DDNS | Some service providers supported, others can be configured manually |
| Firewall | Flexible access control to the router based on packet data: TCP UDP ICMP MAC address filtration |
| SMS | Configuration SMS, SMS gate, SMS notification |
| VPN | |
| OpenVPN | OpenVPN client support up to 5 OpenVPN tunnels |
| GRE | Layer 2 and layer3, support up to 5 GRE VPN tunnels |
| IPsec (optional) | IKEv1 IKEv2 support up to 5 IPsec VPN tunnels |
| DMVPN (optional) | Dynamic multi-point virtual private networks DMVPN |
| PPTP / L2TP (optional) | PPTP or Point to Point Tunneling Protocol and L2TP or layer 2 Tunneling Protocol (L2TP) |
| Monitoring and management | |
| Web GUI | Firmware update HTTP / HTTPS |
| Command line interface | SSHv2 and TELNET |
| Management platform | Central management platform |
| Power | |
| Connector | 7-pins female socket 3,5 mm |
| Input voltage range | 9 to 36 VDC |
| Energy consumption | Idle: 100 mA@12 V Data link: 400 mA (peak) @12 V |
| Physical Specification | |
| Watchdog | Integreted watchdog |
| LEDs | SYS NET USR RSSI x 3 (signal power) |
| Reset button | Reset button / factory reset |
| IP protection level | IP30 |
| Housing and weight | Aluminium, 200 g |
| Dimensions | 82,8 mm x 90 mm x 28,8 mm |
| Installation | DIN rail |
| Working temperature | -20 ° C to 60 ° C |
| Working humidity | 5% to 95% no condensation |
| Standards and certificates | |
| EMI | EN 55032: 2012 class B |
| EMS | IEC 61000-4-2 ESD: Level 4 IEC 61000-4-3 RS: Level 3 IEC 61000-4-4 EFT: Level 3 IEC 61000-4-5 Surge: Level 3 IEC 61000-4-6 CS: Level 3 |
| Vibration | EN50155 |
Descarca documentatie
