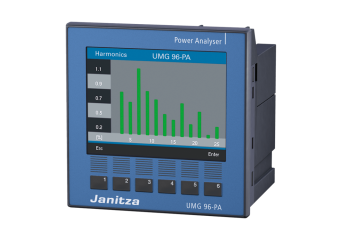

UMG 96-PA
Analyzer + energy meter in one, MID compliance, leakage current measurement, modular design
- MID compliant (certification pending)
- Intuitive color display
- Power quality measurement: Harmonics, THD, Max, Min
- 3 voltage inputs (600V CATIII)
- 3 current inputs
- Fixed sampling of 8.33 KHz
- Serial interface
- Expandable peripherals with:
- Analog inputs
- Ethernet port
- Leakage current measurement module (RCM)
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare5232001 UMG 96-PAModułowy system do pomiaru energii, zasilanie 90 … 277 VAC, 90 … 250 VDCOut of stock Garanție: 2.611,00 RON3.211,53 RONIntră în cont pentru a vedea prețurile 5232001 UMG 96-PAModułowy system do pomiaru energii, zasilanie 90 … 277 VAC, 90 … 250 VDCDisponibilitate: Out of stockPreț net:2.611,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare5232002 UMG 96-PAModułowy system do pomiaru energii, zasilanie 24 … 90 VAC, 24 … 90 VDCOut of stock Garanție: 2.611,00 RON3.211,53 RONIntră în cont pentru a vedea prețurile 5232002 UMG 96-PAModułowy system do pomiaru energii, zasilanie 24 … 90 VAC, 24 … 90 VDCDisponibilitate: Out of stockPreț net:2.611,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare5232004 UMG 96-PA-MID+Modułowy system do pomiaru energii, zasilanie 90 … 277 VAC, 90 …250 VDC, certyfikat MID, certyfikat PTB-A 50.7În stocGaranție: 3.300,00 RON4.059,00 RONIntră în cont pentru a vedea prețurile 5232004 UMG 96-PA-MID+Modułowy system do pomiaru energii, zasilanie 90 … 277 VAC, 90 …250 VDC, certyfikat MID, certyfikat PTB-A 50.7Disponibilitate:În stocPreț net:3.300,00 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare5232010 Module 96-PA-RCM-EModuł do UMG 96-PA, Ethernet, Brama Modbus, Modbus TCP, Modbus RTU przez EthernetÎn stocGaranție: 1.402,00 RON1.724,46 RONIntră în cont pentru a vedea prețurile 5232010 Module 96-PA-RCM-EModuł do UMG 96-PA, Ethernet, Brama Modbus, Modbus TCP, Modbus RTU przez EthernetDisponibilitate:În stocPreț net:1.402,00 RON
Descriere
4-w-1
Energy management | MID | power quality monitoring | RCM monitoring
Intuitive user guidance
High-quality color graphic display with user-friendly menus.
Additional modules
Additional capabilities with optional peripheral modules (three digital inputs and outputs and analog output).
MID measurement
Tamper-proof and legally secure energy data acquisition.
Measurement of current and voltage parameters
Acquisition of current and voltage values in various forms of networks, TN and TT networks, with a surge category of 600 V CAT III.
RCM measurement
Analog inputs can be used to monitor RCM leakage current. In this way, insulation problems can be detected earlier than the RCM circuit breaker will trip, and system availability can be ensured.
or individually configurable as:
Analog signals
Any 0/4 - 20 mA signals.
Additional temperature measurement
The UMG 96-PA module has an integrated temperature input for thermistors (PT 100/1000, KTY 83 or 84).
Specificație tehnică
General parameters:
- Accuracy of voltage and current measurement 0.2%
- Accuracy of active energy measurement (kWh, ... / 5 A) Class 0.5S
Supply voltage
- AC 90 V - 277 V (50/60) Hz or DC 90 V - 250 V, 300 V CAT III
Inputs and outputs
- 3 digital inputs and outputs
- 1 analog output
RMS - instantaneous values, e.g. :
- Current, voltage, frequency
- Active, reactive and apparent power
- Power factor
Energy measurement
- Active, reactive and apparent energy
- Tariffs: HT / LT
Environmental conditions
- Operating temperature range: K55 (-10 to +55 ° C)
Recording of average values, such as :
- Voltage, current / instantaneous and max. values.
- Active, reactive and apparent power / current and max.
- Frequency / current and maximum
Measurement of power quality
- Harmonics sequentially / current and voltage: 1.-25.
- THD-U / THD-I distortion factor in%.
- Consistent component, symmetrical component, zero component
- Measurement recording
- 4 MB memory (Flash)
- Average, minimum, maximum value
Interface / protocol
- RS485 / Modbus RTU
Programming / threshold values / alarm management
- Comparator (2 groups of 3 comparators each)
Network visualization software
- GridVis®-Basic (included in the scope of delivery)
Optional additional functions with GridVis®-Professional, GridVis®-Service and GridVis®-Ultimate packages.
Measured voltage input (3 x)
- Surge category: 600 V CAT III
- Measured range, LN voltage, AC (without transformer): 0 - 600 Vrms (± 10%)
- Measurement range, LL voltage, AC (without transformer): 0 - 1040 Vrms (± 10%)
- Frequency measurement range: 45 to 65 Hz
- Sampling frequency per channel (50/60 Hz): 8.33 kHz Measurement in quadrants: 4
- Networks: TN, TT
Measured current input (3 x)
- Rated current: 1 / 5A
- Surge category: 300 V CAT II
- Sampling frequency: 8.33 kHz
Mechanical characteristics
- Net weight (with connectors included): ca. 250 g
- Device dimensions in mm (H X W X D): 96 x 96 x 86
- Degree of protection according to EN 60529 (with sealing = IP54): IP40 front / IP20 rear
- Mounting for IEC EN 60999-1 / DIN EN 50022: Front panel mounting
* MID certification has been declared
Modules for UMG 96-PA
RCM current input
- Analog inputs: 2 for RCM or analog current measurement
- Rated current: 30 mA rms
- Trigger current: 50 μA
- Resolution: 1 μA
Temperature measurement (1 x)
- Update time: 1 second
- Connected sensors: PT100, PT1000, KTY83, KTY84
Interface
- Ethernet RJ45 connection
Current measurement I4
- Rated current: 1 / 5A
- Surge category: 300 V CAT II
- Power consumption: approx. 0.2 VA (Ri = 5 mOhm)
- Sampling frequency: 8.33 kHz
Wiring diagram:
