Producător: Lenze

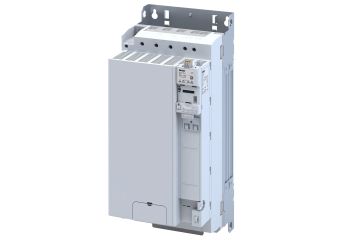

Frequency inverter Lenze i550 cabinet series with a power of 37 kW and 3x400V supply.
- Built-in communication: Modbus TCP
- Output current: 76/65 A
- Optional STO functionality
- Integrated EMC filter
- Compact dimensions for space-saving in the control cabinet
- Servo control (SC-ASM) with feedback; U/f with feedback
- Energy-saving function (VFC Eco)
Preț de la 14.060,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Frequency inverter Lenze i550 cabinet 37kW 3x400VAC Modbus TCP
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareI55AE337F10V1007WSLenze i550-C37/400-3; 37 kW; 3x400VAC; Modbus TCP; without STO; standard I/OOut of stock Garanție: 14.060,00 RON17.293,80 RONIntră în cont pentru a vedea prețurile I55AE337F10V1007WSLenze i550-C37/400-3; 37 kW; 3x400VAC; Modbus TCP; without STO; standard I/ODisponibilitate: Out of stockPreț net:14.060,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareI55AE337F1AV1007WSLenze i550-C37/400-3; 37 kW; 3x400VAC; Modbus TCP; Basic Safety – STO; standard I/OOut of stock Garanție: 14.230,00 RON17.502,90 RONIntră în cont pentru a vedea prețurile I55AE337F1AV1007WSLenze i550-C37/400-3; 37 kW; 3x400VAC; Modbus TCP; Basic Safety – STO; standard I/ODisponibilitate: Out of stockPreț net:14.230,00 RON
Descriere
Specificație tehnică
| Specification | I55AE337F10V1007WS | I55AE337F1AV1007WS |
|---|---|---|
| Rated Power | 37 kW/50 HP | |
| Supply Voltage | 3/PE 400/480 V AC | |
| Output Current | 76/65 A | |
| Output Frequency | 0-599 Hz | |
| IP code | IP20 | |
| EMC Filter | Integrated | |
| Mounting Location | Control Cabinet | |
| I/O Extension | Standard I/O | |
| Number of Connections | 5 digital inputs, 1 digital output, 2 analog inputs, 1 analog output, 1 relay output NO/NC, Frequency input 0...100kHz |
|
| Industrial Communication Bus | Modbus TCP | |
| Safety Functions | None | Basic Safety - STO |
| Approvals / Standards | CE, UL, CSA, EAC, RoHS | |
| Operating Temperature | -10°C to +50°C | |
| Overload Capacity | 200% for 3 s; 150% for 60 s | |
| Motor Control | - Energy-saving function (VFC Eco) - Linear/quadratic control according to U/f characteristic (VFC Plus) - Sensorless vector control (SLVC) - Sensorless vector control for synchronous motors (up to 22 kW) - Servo control (SC-ASM) with feedback - Control according to U/f characteristic with feedback |
|
| Additional Functions | DC braking, brake control, S-ramps, flying start, PID controller, dynamic braking using a resistor | |
| Switching Frequencies | 2, 4, 8, 16 kHz | |
| Weight | 16,3 kg | 16,3 kg |
