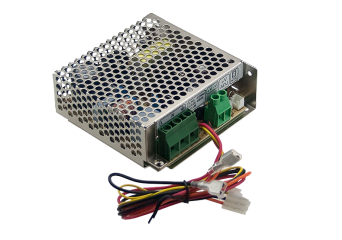

SCP-35

Enclosed single output power supply: SCP-35-12, SCP-35-24

Producător: MEAN WELL
Producător: MEAN WELL
  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage / Battery polarity protections (by fuse)
  • Built-in temperature compensation function
  • Output voltage detection signal
  • Cooling by free air convection
  • LED indicator for power on
  • Suitable for installation in metallic or non-metallic system enclosure
  • 100% full load burn-in test
Preț de la 87,40 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele

Descriere

SCP series power supplies are intended for operation in monitoring systems, access control, alarm systems, etc. In conjunction with an external battery, they ensure uninterruptible power supply. During normal operation, the power supply charges the connected battery, and in the event of a mains voltage failure, it uses the energy stored in it to power the receiver. Additionally, it has a connector for connecting a thermistor to compensate for voltage depending on the ambient temperature, and a wire connector that signals a voltage loss.

Specificație tehnică

  • SCP-35: 36-39W -output with battery charging DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension
SCP-35-12 13.8V, 0~2.6A +/-2% 120mV 83% 36W 99x97x36mm
SCP-35-24 27.6V, 0~1.4A +/-1% 200mV 86% 39W 99x97x36mm
