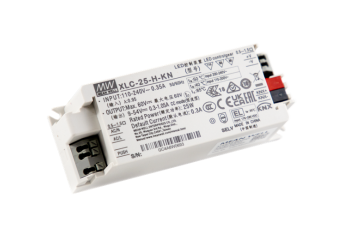

XLC-25KN
Constant power LED drivers with KNX interface
- Constant power mode output with multiple stage selectable by ETS database (KNX)
- KNX/EIB protocol, support KNX data secure
- Plastic housing with class II and PFC design
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Meet emergency lighting (EL) function application
- Minimum dimming level 0.5%
- Function:operation hours,power consumption feedback, log/linear curve selection ... etc
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 200,70 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXLC-25-H-KNLED driver 25W 9~54V 0.3~1.05AOut of stock Garanție: 200,70 RON246,86 RONIntră în cont pentru a vedea prețurile XLC-25-H-KNLED driver 25W 9~54V 0.3~1.05ADisponibilitate: Out of stockPreț net:200,70 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXLC-25-H-KNSLED driver 25W 9~54V 0.3~1.05AOut of stock Garanție: 200,70 RON246,86 RONIntră în cont pentru a vedea prețurile XLC-25-H-KNSLED driver 25W 9~54V 0.3~1.05ADisponibilitate: Out of stockPreț net:200,70 RON
Descriere
XLC-25-KN Series is a 25W with constant power output LED driver. It can operate from 100~305VAC and output current ranging between 300 mA to 1050 mA selectable by ETS database. The integrated KNX interface avoids using the compliated KNX-DALI gateway. Thanks to high efficiency up to 88%, it is able to operate for-25℃~85℃ case temperature under free air convection. XLC-25-KN is designed based on latest safety regulations, and provides more flexibility for LED Lighting application.
Specificație tehnică
- XLC-25KN: 25W LED driver series with KNX interface → Manufacturer documentation
| Model | Input voltage | Output parameters | Output current tolerance | Efficiency | Dimension (LxWxH) |
| XLC-25-H-KN XLC-25-H-KNS |
100~305VAC 141~400VDC |
9~54 V, 300-1050 mA typ. 300 mA |
±5% | 88% | KN: 107x40x32mm KNS: 147x40x32mm |
