- Constant Power mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- CLass 2 power unit
- No load / Standby power consumption < 0.5W
- IP67 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer, 3 in 1 dimming function (Dim to off and Isolation design)
- Typical lifetime > 50 000 hours
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
XLG-25
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXLG-25-ALED driver 25W 22~54V 0.25~1.05AÎn stocGaranție: 88,90 RON109,35 RONIntră în cont pentru a vedea prețurile XLG-25-ALED driver 25W 22~54V 0.25~1.05ADisponibilitate:În stocPreț net:88,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXLG-25-ABLED driver 25W 22~54V 0.25~1.05AOut of stock Garanție: 108,70 RON133,70 RONIntră în cont pentru a vedea prețurile XLG-25-ABLED driver 25W 22~54V 0.25~1.05ADisponibilitate: Out of stockPreț net:108,70 RON
Descriere

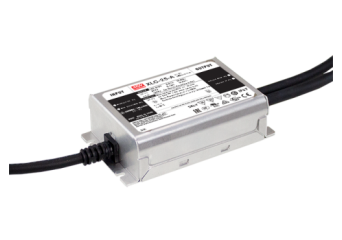

XLG-25 series is a 25W AC//DC LED driver featuring the constant power mode output. XLG-25 operates from 90~305VAC. Thanks to the high efficiency up to 88%, the entire series is able to operate between -40C ~ +85C wide temperature range with air convection. The design of metal housing and IP67 protection level allows this series to fit both indoor and outdoor applications. XLG-25 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. XLG-25 series comply with the latest version of IEC 61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming curcuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Available models:
- XLG-25-A
- XLG-25-AB
Specificație tehnică
- XLG-25: 25W details
| Model | Output | Tolerance | Efficiency | Dimension |
| XLG-25 | 22~54V, 250-1050mA | +/-5% | 88% | 105x63x30mm |
