NTS-1200
NTS series DC/AC converter with a power of 1200W: NTS-1200-212, NTS-1200-224, NTS-1200-248
- Compact housing and low weight
- True sine wave at the output (THD <3%)
- Overload capacity up to 2000W (60ms)
- Fan cooling Low power consumption in no load state (<1.5W)
- A wide range of acceptable operating temperatures: -25 ~ + 70 ° C
- LED diode indicating the device status
- Short-circuit, overload and temperature protection
- Reverse polarity protection, low and high voltage alarm on input
- Dedicated to lead-acid and lithium-ion batteries
- Built-in RS-232 communication protocol
- Remote control possible
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTS-1200-212EUDC/AC inverter EU 1200W 10.5~15V-230V 50HzÎn stocGaranție: 1.256,30 RON1.545,25 RONIntră în cont pentru a vedea prețurile NTS-1200-212EUDC/AC inverter EU 1200W 10.5~15V-230V 50HzDisponibilitate:În stocPreț net:1.256,30 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTS-1200-224EUDC/AC inverter EU 1200W 21~30V-230V 50HzÎn livrare Garanție: 1.256,30 RON1.545,25 RONIntră în cont pentru a vedea prețurile NTS-1200-224EUDC/AC inverter EU 1200W 21~30V-230V 50HzDisponibilitate: În livrarePreț net:1.256,30 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTS-1200-248EUDC/AC inverter EU 1200W 42~60V-230V 50HzÎn stocGaranție: 1.256,30 RON1.545,25 RONIntră în cont pentru a vedea prețurile NTS-1200-248EUDC/AC inverter EU 1200W 42~60V-230V 50HzDisponibilitate:În stocPreț net:1.256,30 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareCarry handleCarry handle for NPB, NTS, NTU seriesÎn stocGaranție: 26,50 RON32,60 RONIntră în cont pentru a vedea prețurile Carry handleCarry handle for NPB, NTS, NTU seriesDisponibilitate:În stocPreț net:26,50 RON
Descriere

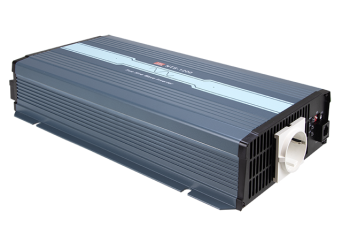

Compact DC / AC converter MEAN WELL NTS-1200 with a rated power of 1200W and real sine wave (true sine, THD> 3%) offers the user a configurable output voltage with the following values: 200/220/230 / 240VAC for models NTS-1200-212, NTS-1200-224, NTS-1200-248. The selection of the output voltage and frequency is easy with the use of a switch on the housing. The device can be powered by 12/24 / 48VDC with current values of 120/60 / 30A respectively. The converter works with both lithium-ion and lead-acid batteries.
The device is protected against excessive temperature, short-circuit and overcurrent. In order to minimize the risk of excessive battery discharge, the NTS-1200 converter is equipped with an alarm. After the alarm is triggered and the voltage drops further, the device turns off, protecting the battery.
It is also possible to temporarily overload the converter: 1380W (3 min.), 1800W (10 s), 2000W (0.6 s). This functionality allows you to connect a device with a higher inrush current (e.g. electric tools).
The NTS-1200 converter is equipped with a remote control function using an accessory MEAN WELL controller. The RS-232 communication port enables constant monitoring of the device's operating parameters and reacting to any changes (e.g. when installing off-grid panels). The MEAN WELL NTS-1200 converter can be used wherever there is no access to the power grid, e.g.
- Use of off-grid panels in home systems. For example, on a plot, a summer house
- Use with caravans and yachts to convert energy from batteries
- Application on construction sites: e.g. for battery operation of mast floodlights or electric tools
- Backup of power, e.g. emergency lighting, motors
Specificație tehnică
- NTS-1200: NTS series DC/AC converter with a power of 1200W - SPECIFICATION
| Model | Power | Input VDC | Output VAC/Hz | Socket | Efficiency | Dimensions |
| NTS-1200-212EU | 1200W | 10-16.5 | 230/50 | EU | 90% | 333x184x70mm |
| NTS-1200-224EU | 1200W | 20-33 | 230/50 | EU | 93% | 333x184x70mm |
| NTS-1200-248EU | 1200W | 40-66 | 230/50 | EU | 93% | 333x184x70mm |
