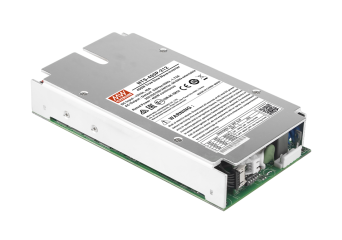

NTS-400p
NTS series DC/AC converter with a power of 400W : NTS-400p-212, NTS-400p-224, NTS-400p-248
- Compact, open housing and low weight
- True sine wave at the output (THD <3%)
- Rated power 250W (400W with external fan cooling)
- Overload capacity up to 800W (60ms)
- Low power consumption in no load state (<1.5W)
- Wide range of allowable operating temperatures: -20 ~ + 70 ° C
- LED diode indicating the device status
- Short-circuit, overload and temperature protection
- Reverse polarity protection, low and high voltage alarm on input
- Dedicated to lead-acid and lithium-ion batteries
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTS-400P-212DC/AC inverter 400W 10.5~15V-230V 50HzÎn livrare Garanție: 508,00 RON624,84 RONIntră în cont pentru a vedea prețurile NTS-400P-212DC/AC inverter 400W 10.5~15V-230V 50HzDisponibilitate: În livrarePreț net:508,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTS-400P-224DC/AC inverter 400W 21~30V-230V 50HzÎn stocGaranție: 508,00 RON624,84 RONIntră în cont pentru a vedea prețurile NTS-400P-224DC/AC inverter 400W 21~30V-230V 50HzDisponibilitate:În stocPreț net:508,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTS-400P-248DC/AC inverter 400W 42~60V-230V 50HzOut of stock Garanție: 508,00 RON624,84 RONIntră în cont pentru a vedea prețurile NTS-400P-248DC/AC inverter 400W 42~60V-230V 50HzDisponibilitate: Out of stockPreț net:508,00 RON
Descriere
Compact DC / AC converter MEAN WELL NTS-400p with a rated power of 250W (400W with external fan cooling) and a real sine wave (true sine, THD> 3%) offers the user a configurable output voltage with the following values: 200/220/230 / 240VAC for models NTS-400p-212, NTS-400p-224, NTS-400p-248. The selection of the output voltage and frequency is easy with the use of a switch on the housing.
The device can be powered by 12/24 / 48VDC with current values of 40/20 / 10A respectively. The converter works with both lithium-ion and lead-acid batteries. The device is protected against excessive temperature, short-circuit and overcurrent. In order to minimize the risk of excessive battery discharge, the NTS-450 converter is equipped with an alarm. After the alarm is triggered and the voltage drops further, the device turns off, protecting the battery.
It is also possible to temporarily overload the converter: 460W (3 min.), 600W (10 s), 800W (0.6 s). This functionality allows you to connect a device with a higher inrush current (e.g. electric tools). It should be remembered that the power above 250W is achieved only with cooling with an external fan.
The MEAN WELL NTS-400p converter can be used wherever there is no access to the power grid, e.g.
- Use of off-grid panels in home systems. For example, on a plot, a summer house
- Use with caravans and yachts to convert energy from batteries
- Application on construction sites: e.g. for battery operation of floodlights or electric tools
- Backup power, e.g. emergency lighting, small motors
Specificație tehnică
- NTS-400p: NTS series DC/AC converter with a power of 400W - SPECIFICATION
| Model | Power | Input VDC | Output VAC/Hz | Socket | Efficiency | Dimensions |
| NTS-400p-212EU | 400W | 10-16.5 | 230/50 | EU | 91% | 186x100.5x32mm |
| NTS-400p-224EU | 400W | 20-33 | 230/50 | EU | 93% | 186x100.5x32mm |
| NTS-400p-248EU | 400W | 40-66 | 230/50 | EU | 93% | 186x100.5x32mm |
