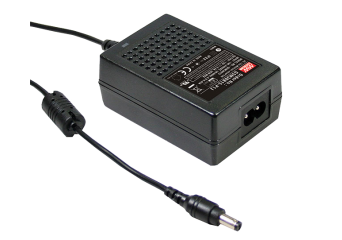

GSM36B

Desktop medical power supply

Producător: MEAN WELL
Producător: MEAN WELL
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 , EN60601-1/-1-11
  • Extremely low leakage current
  • Energy efficiency Level VI and meet COC version 5 ( except 5-9V for Level V)
  • -25~60°C wide range working temperature
  • Protections: Short circuit / Overload / Over voltage
  • LED indicator for power on



Preț de la 77,50 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 8 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele

Accesorii

Useful products

Descriere

Desktop type medical power supplies are designed to power a wide range of medical equipment. They are characterized by very good parameters, compliance with new standards and low power consumption in the no-load state. The set does not include a power cord. They can also be used to cover devices operating at low temperatures, such as switches, converters, routers, laptops, landline phones, printers, etc.

Specificație tehnică

  • GSM36B: 22~36W DETAILS

    Model Output Tolerance Ripple & noise Efficiency Plug Dimension
    GSM36B05-P1J 5V, 0~4.5A +/-5% 60mV 81% P1J 2.1Øx5.5Øx11mm 79x54x33mm
    GSM36B07-P1J 7V, 0~4.32A +/-5% 80mV 83% P1J 2.1Øx5.5Øx11mm 79x54x33mm
    GSM36B09-P1J 9V, 0~4A +/-5% 80mV 84% P1J 2.1Øx5.5Øx11mm 79x54x33mm
    GSM36B12-P1J 12V, 0~3A +/-3% 120mV 86% P1J 2.1Øx5.5Øx11mm 79x54x33mm
    GSM36B15-P1J 15V, 0~2.4A +/-5% 120mV 87% P1J 2.1Øx5.5Øx11mm 79x54x33mm
    GSM36B18-P1J 18V, 0~2A +/-5% 150mV 87% P1J 2.1Øx5.5Øx11mm 79x54x33mm
    GSM36B24-P1J 24V, 0~1.5A +/-2% 180mV 87% P1J 2.1Øx5.5Øx11mm 79x54x33mm
    GSM36B48-P1J 48V, 0~0.75A +/-2% 240mV 88% P1J 2.1Øx5.5Øx11mm 79x54x33mm
