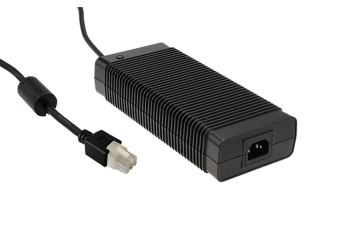

main product photo

GST280A

Desktop power supply

Producător: MEAN WELL
Producător: MEAN WELL
    • Wide input voltage range 85-264 VAC, 127-370 VDC
    • Energy efficiency - level VI
    • Efficiency up to 94.5%
    • Active PFC No-load power consumption <<0.5 W
    • Compliant with EISA 2007, EU ErP
    • Protection: short circuit, overvoltage, overload, temperature
    • LED operation signaling
    • Working temperature -30 - 70 ° C
    • Fully enclosed plastic housing, no fan
    • Compliance with many standards and certificates
    • 3-year warranty

Cables for power supplies are available at the bottom of the page under the "Accessories and additions" tab

Discounted prices and exact stock levels are visible after logging in to the e-shop.



Preț de la 481,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 6 model

Promocja cenowa na model HDR-15-5

GST280A

GST280A

Modele

Accesorii

Descriere

GST is a highly reliable, 90W desktop style single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.

With the extremely low no-load power consumption, GST is compliant with USA EISA 2007/D0E, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (COC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST is certified for the international safety regulations.

Available models:

  • 12V: GST160A12-P1J, GST220A12-P1J, GST280A12-P1J
  • 15V: GST160A15-P1J, GST220A15-P1J, GST280A15-P1J
  • 20V: GST160A20-P1J, GST220A20-P1J, GST280A20-P1J
  • 24V: GST160A24-P1J, GST220A24-P1J, GST280A24-P1J
  • 48V: GST160A48-P1J, GST220A48-P1J, GST280A48-P1J

Specificație tehnică

  • GST280A:252~280W DETAILS

    Model Output Tolerance Ripple & noise Efficiency Plug Dimension
    GST280A12-P1J 12V, 0~21A +/-5% 120mV 90% 6P/4.2MM 220x95x46mm
    GST280A15-P1J 15V, 0~17A +/-5% 120mV 90% 6P/4.2MM 220x95x46mm
    GST280A20-P1J 20V, 0~13A +/-4% 150mV 92% 6P/4.2MM 220x95x46mm
    GST280A24-P1J 24V, 0~11.67A +/-3% 180mV 93% 6P/4.2MM 220x95x46mm
    GST280A48-P1J 48V, 0~5.84A +/-2% 240mV 94% 6P/4.2MM 220x95x46mm

Descarca documentatie
