- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareEDR-150-24DIN rail power supply 150W 24V 6.5AÎn stocGaranție: 131,00 RON161,13 RONIntră în cont pentru a vedea prețurile EDR-150-24DIN rail power supply 150W 24V 6.5ADisponibilitate:În stocPreț net:131,00 RON
Descriere

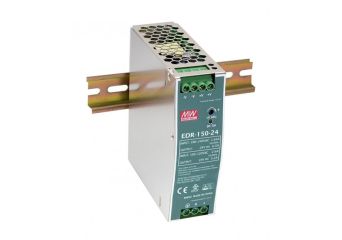

EDR-150-24 is one economical slim DIN rail power supply series, providing up to 156W at 230VAC input. This series is adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2(S800/0 Load), the norm the European Union regulates for harmonic current.
EDR-150-24 is designed with metal housing that enhances the units power dissipation. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -200C and 600C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN62368-1 , and etc.) make EDR-150-24 a very competitive power supply solution for industrial applications.
Available models:
- 24V: EDR-150-24
Specificație tehnică
EDR-150: 150W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| EDR-150-24 | 24V, 0~6.5A | +/-1% | 150mV | 87% | 40x125.2x113.5mm |
