- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low protection / Battery reverse polarity protection by fuse
- Can be installed on DIN rail TS-35/7.5 or 15
- Alarm signal for AC OK and Battery low (via relay)
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
DRC-100
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDRC-100Apower supply 100W 13.8V 7A, 13.8V 2.5AÎn stocGaranție: 236,10 RON290,40 RONIntră în cont pentru a vedea prețurile DRC-100Apower supply 100W 13.8V 7A, 13.8V 2.5ADisponibilitate:În stocPreț net:236,10 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDRC-100Bpower supply 100W 27.6V 3.5A, 27.6V 1.25AÎn stocGaranție: 236,10 RON290,40 RONIntră în cont pentru a vedea prețurile DRC-100Bpower supply 100W 27.6V 3.5A, 27.6V 1.25ADisponibilitate:În stocPreț net:236,10 RON
Descriere

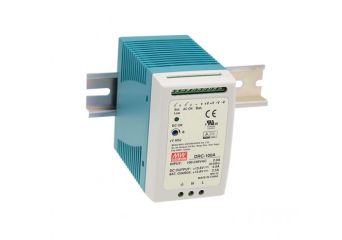

DRC-100 is a 96W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-100 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 89%, it can operate with air convection cooling under -30ºC through 70ºC. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.
Available models:
- 13.8V: DRC-100A
- 27.6V: DRC-100B
Specificație tehnică
DRC-100: 97W output with battery charging DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| DRC-100A | 13.8V, 0~7.0A 13.8V, 0~2.5A |
+/-1% (charging) |
120mV | 86% | 97W | 55x90x100mm |
| DRC-100B | 27.6V, 0~3.5A 27.6V, 0~1.25A |
+/-1% (charging) |
240mV | 88% | 97W | 55x90x100mm |
