XDR-150E
Economical Ultra Slim Industrial DIN Rail Power Supply
- 85~264Vac input range
- Over voltage category III (OVC III)
- 30mm slim width
- Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010)
- High efficiency up to 91% and no load power dissipation<1W
- Built-in constant current limiting circuit
- Protections: Short circuit / Overload / Over voltage/ Over temperature
Fanless design, cooling by free air convection - -40~+70C wide range operation temperature (>+50℃ derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-150E-12DIN rail power supply 132W 12V 11AOut of stock Garanție: 126,90 RON156,09 RONIntră în cont pentru a vedea prețurile XDR-150E-12DIN rail power supply 132W 12V 11ADisponibilitate: Out of stockPreț net:126,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-150E-24DIN rail power supply 156W 24V 6.5AOut of stock Garanție: 126,90 RON156,09 RONIntră în cont pentru a vedea prețurile XDR-150E-24DIN rail power supply 156W 24V 6.5ADisponibilitate: Out of stockPreț net:126,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-150E-36DIN rail power supply 155.9W 36V 4.33AOut of stock Garanție: 126,90 RON156,09 RONIntră în cont pentru a vedea prețurile XDR-150E-36DIN rail power supply 155.9W 36V 4.33ADisponibilitate: Out of stockPreț net:126,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-150E-48DIN rail power supply 156W 48V 3.25AOut of stock Garanție: 126,90 RON156,09 RONIntră în cont pentru a vedea prețurile XDR-150E-48DIN rail power supply 156W 48V 3.25ADisponibilitate: Out of stockPreț net:126,90 RON
Descriere

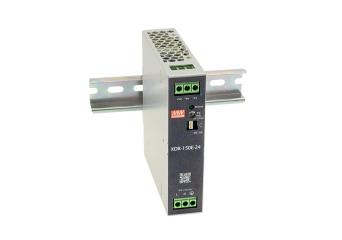

The XDR-150E series is a 150W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 30mm casing, optimizing system installation space, and an ultra-wide input
range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 91% and a low standby power consumption <1W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70 (up to +50 at full load); OVCIII compliance; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3 years warranty, the XDR-150E series is a compact, high-performance, and highly reliable DIN rail power supply.
Available models:
- 12V: XDR-150E-12
- 24V: XDR-150E-24
- 36V: XDR-150E-36
- 48V: XDR-150E-48
Specificație tehnică
XDR-150E: 150W Economical Ultra Slim Industrial DIN Rail Power -> Manufacturer specification
| Model | Input voltage | Output parameters | Output voltage tolerance | Efficiency | Dimension (LxWxH) |
| XDR-150E-12 |
85~264VAC, 120~370VDC |
12V, 0~10A | +/-2% | 89% | 30x125.2x116mm |
| XDR-150E-24 |
85~264VAC, 120~370VDC |
24V, 0~5A | +/-1% | 91% | 30x125.2x116mm |
| XDR-150E-36 |
85~264VAC, 120~370VDC |
36V, 0~3.33A | +/-1% | 91% | 30x125.2x116mm |
| XDR-150E-48 |
85~264VAC, 120~370VDC |
48V, 0~2.5A | +/-1% | 91% | 30x125.2x116mm |
