- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 94%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage /
- Over temperature
- Medical safety approved (2 MOPP)×
- Suitable for BF application with appropriate system
- consideration
- Built-in cooling fan ON-OFF control
- Current sharing up to 4000W (3+1)
- Built-in DC OK signal
- Built-in remote ON-OFF control
- Standby 5V@0.3A
- Built-in remote sense function
- No load power consumption<0.75W
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMSP-1000-12medical switching power supply 960W 12V 80AOut of stock Garanție: 1.078,50 RON1.326,56 RONIntră în cont pentru a vedea prețurile MSP-1000-12medical switching power supply 960W 12V 80ADisponibilitate: Out of stockPreț net:1.078,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMSP-1000-15medical switching power supply 960W 15V 64AOut of stock Garanție: 1.078,50 RON1.326,56 RONIntră în cont pentru a vedea prețurile MSP-1000-15medical switching power supply 960W 15V 64ADisponibilitate: Out of stockPreț net:1.078,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMSP-1000-24medical switching power supply 1008W 24V 42AOut of stock Garanție: 1.078,50 RON1.326,56 RONIntră în cont pentru a vedea prețurile MSP-1000-24medical switching power supply 1008W 24V 42ADisponibilitate: Out of stockPreț net:1.078,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMSP-1000-48medical switching power supply 1008W 48V 21AOut of stock Garanție: 1.078,50 RON1.326,56 RONIntră în cont pentru a vedea prețurile MSP-1000-48medical switching power supply 1008W 48V 21ADisponibilitate: Out of stockPreț net:1.078,50 RON
Descriere

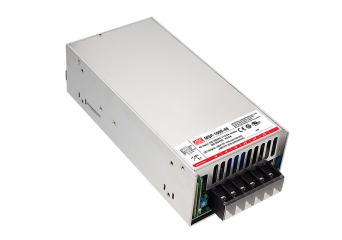

MSP-1000 is a single output enclosed type AC/DC power supply delivering 1000W output power fo r a wide range of medical applications. The entire series operates for 90~264 VAC input voltage and supplies different output voltages between 12V and 48V that can satisfy the demands for all kinds of medical equipments. Meanwhile, the circuitry design meets the international medical standards, 2x MOPP, suitable for medical electrical devices. MSP-1000 is equipped with various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for the purpose of using control solutions.
Specificație tehnică
- MSP-1000: Enclosed medical power supply 960~1008W (specification)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| MSP-1000-12 | 12V, 0~80A | +/-2% | 150mV | 91,5% | 218x105x63.5mm |
| MSP-1000-15 | 15V, 0~64A | +/-1.5% | 150mV | 92% | 218x105x63.5mm |
| MSP-1000-24 | 24V, 0~42A | +/-1% | 200mV | 93% | 218x105x63.5mm |
| MSP-1000-48 | 48V, 0~21A | +/-1% | 250mV | 94% | 218x105x63.5mm |
