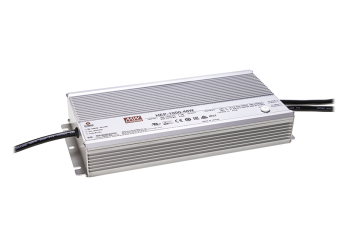

HEP-1000

HEP-1000 is an industrial AC / DC power supply with a power of 1000W and high resistance to difficult working conditions: moisture, dust, oils and high vibrations. Thanks to the use of high-quality aluminum housing and fanless cooling, the product meets the IP67 tightness class (for the HEP-1000-xyW model). Despite the use of convection cooling, the acceptable operating temperature range is -40 ~ + 70 ° C. The power supply is available in two versions: with a screw terminal (for the HEP-1000-xy model) and with IP67 cabling (HEP-1000-xyW).

The device has built-in 2 and 3-stage charging characteristics programmed for optimal charging of different types of batteries (lead acid, gel, AGM, lithium-ion). The user also has the option of independently programming his own charging curve. Curve programming is possible thanks to the programmer of the Mean Well SBP-001 chargers and the software of the Mean Well company. In the absence of an external programmer, it is possible to manually select the charging current and voltage using the PMBus interface.

Thanks to the built-in standard PMBus communication protocols (optional CANBus), the HEP-1000-W series can be seamlessly integrated into a larger system, making it a controllable peripheral that offers many benefits such as energy saving, easy monitoring and fast communication. The case design and firmware functions make the HEP-1000-W a perfect match for digital energy management, electrolysis, burnout equipment, charging equipment and laser applications.

Application examples:

• Industrial automation components
• Industrial control systems, especially in a harsh environment
• Electronic devices
• 5G transmitters
• Charging the batteries
