Producător: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 112,30 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRID-65Aswitching power supply 65W 5V 8A, 12V 4AOut of stock Garanție: 112,30 RON138,13 RONIntră în cont pentru a vedea prețurile RID-65Aswitching power supply 65W 5V 8A, 12V 4ADisponibilitate: Out of stockPreț net:112,30 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRID-65Bswitching power supply 65W 5V 8A, 24V 3AOut of stock Garanție: 112,30 RON138,13 RONIntră în cont pentru a vedea prețurile RID-65Bswitching power supply 65W 5V 8A, 24V 3ADisponibilitate: Out of stockPreț net:112,30 RON
Descriere

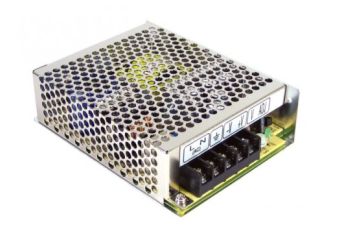

MEAN WELL RID-65 has two galvanically separated outputs with voltages of 5.12 or 5.24 VDC. The output power is 65 W and additional brackets allow mounting on a DIN rail.
Specificație tehnică
- RID-65: Enclosed 2-output power supply 66~68W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RID-65A | 5V, 0.3~8.0A 12V, 0.2~4.0A |
+/-2% +/-8% |
80mV 120mV |
81% | 66W | 129x98x38mm |
| RID-65B | 5V, 0.3~8.0A 24V, 0.2~3.0A |
+/-2% +/-10% |
80mV 150mV |
82% | 68W | 129x98x38mm |
