Producător: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -25 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 155,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRID-85Aswitching power supply 85W 5V 10A, 12V 5AOut of stock Garanție: 155,00 RON190,65 RONIntră în cont pentru a vedea prețurile RID-85Aswitching power supply 85W 5V 10A, 12V 5ADisponibilitate: Out of stockPreț net:155,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRID-85Bswitching power supply 85W 5V 10A, 24V 2.5AOut of stock Garanție: 155,00 RON190,65 RONIntră în cont pentru a vedea prețurile RID-85Bswitching power supply 85W 5V 10A, 24V 2.5ADisponibilitate: Out of stockPreț net:155,00 RON
Descriere

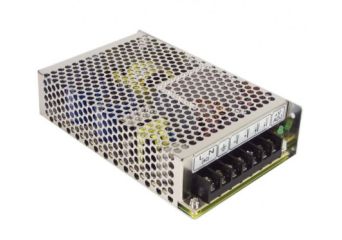

RID-85 are power supplies with a power of 85 W and two separated outputs - with a voltage of 5/12 or 5/24 VDC. They are also characterized by a wide operating temperature range and a resistant metal housing.
Specificație tehnică
- RID-85: Enclosed 2-output power supply 88W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RID-85A | 5V, 2.0~10A 12V, 0.3~5.0A |
+/-2% +/-5% |
80mV 120mV |
80% | 88W | 159x97x38mm |
| RID-85B | 5V, 2.0~10A 24V, 0.3~2.5A |
+/-2% +/-5% |
80mV 120mV |
81% | 88W | 159x97x38mm |
