Producător: MEAN WELL
- input voltage 85-264VAC, 127-370VDC
- built-in active PFC function
- protections: short circuit, overvoltage and overload protection
- Thermal protection
- cooling with a built-in fan
- the ability to adjust the output voltage in a small range
- working temperature -10 ~ + 50 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 588,10 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareQP-320Dswitching power supply 320W 5V,12V, 24V,-12VOut of stock Garanție: 588,10 RON723,36 RONIntră în cont pentru a vedea prețurile QP-320Dswitching power supply 320W 5V,12V, 24V,-12VDisponibilitate: Out of stockPreț net:588,10 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareQP-320Fswitching power supply 320W 5V,15V, 24V,-15VOut of stock Garanție: 588,10 RON723,36 RONIntră în cont pentru a vedea prețurile QP-320Fswitching power supply 320W 5V,15V, 24V,-15VDisponibilitate: Out of stockPreț net:588,10 RON
Descriere

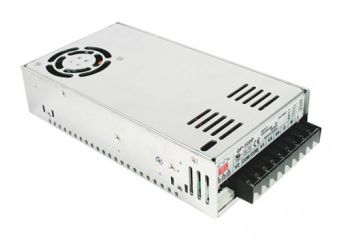

QP-320 MEAN WELL have 4 voltage outputs, and the total power of the power supply is 320w. In addition, they also feature active fan cooling.
Specificație tehnică
- QP-320: Enclosed 4-output power supply 316W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| QP-320D | 5V, 2.5~20A 12V, 0.0~10A 24V, 0.2~5.0A -12V, 0.2~2.0A |
+/-3% +/-3% +10%,-6% +/-10% |
100mV 150mV 150mV 150mV |
83% | 316W | 215x115x50mm |
| QP-320F | 5V, 2.5~20A 15V, 0.0~10A 24V, 0.2~5.0A -15V, 0.2~1.6A |
+/-3% +/-3% +10%,-6% +/-10% |
100mV 150mV 150mV 150mV |
83% | 316W | 215x115x50mm |
