Producător: MEAN WELL
- input voltage 115 / 230VAC - change with a switch
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 173,70 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRQ-125Bswitching power supply 125W 5V, 12V,-5V,-12VOut of stock Garanție: 173,70 RON213,65 RONIntră în cont pentru a vedea prețurile RQ-125Bswitching power supply 125W 5V, 12V,-5V,-12VDisponibilitate: Out of stockPreț net:173,70 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRQ-125Cswitching power supply 125W 5V, 15V,-5V,-15VOut of stock Garanție: 173,70 RON213,65 RONIntră în cont pentru a vedea prețurile RQ-125Cswitching power supply 125W 5V, 15V,-5V,-15VDisponibilitate: Out of stockPreț net:173,70 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRQ-125Dswitching power supply 125W 5V,12V, 24V,-12VOut of stock Garanție: 173,70 RON213,65 RONIntră în cont pentru a vedea prețurile RQ-125Dswitching power supply 125W 5V,12V, 24V,-12VDisponibilitate: Out of stockPreț net:173,70 RON
Descriere

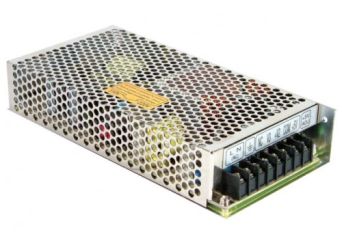

The RQ-125 power supply has as many as 4 output channels with voltages: 5, -5.12, -12.15, -15.24 (different variants depending on the model). In addition, the manufacturer provides for the possibility of mounting the power supply on a DIN rail - using optional brackets.
Specificație tehnică
- RQ-125: Enclosed 4-output power supply 120~124W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RQ-125B | 5V, 2.0~12A 12V, 0.5~4.5A -5V, 0.1~1.0A -12V, 0.0~1.0A |
+/-2% +8%,-3% +6%,-10% +/-5% |
80mV 120mV 80mV 80mV |
79% | 120W | 199x98x38mm |
| RQ-125C | 5V, 2.0~12A 15V, 0.5~4.0A -5V, 0.1~1.0A -15V, 0.0~1.0A |
+/-2% +8%,-3% +6%,-10% +/-5% |
80mV 120mV 80mV 80mV |
80% | 123W | 199x98x38mm |
| RQ-125D | 5V, 2.0~12A 12V, 0.5~4.0A 24V, 0.1~2.5A -12V, 0.0~1.0A |
+/-2% +8%,-3% +/-8% +/-5% |
80mV 120mV 150mV 80mV |
82% | 124W | 199x98x38mm |
