Producător: MEAN WELL
- input voltage 88-264VAC, 124-370VDC
- 105 ° C long-life electrolytic capacitors
- protections: short circuit, overvoltage and overload protection
- meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
- withstand up to 300VAC at input for 5 seconds
- vibration resistance up to 5G
- the ability to adjust the output voltage of one output in the range of -5% ~ + 10%
- small size, high power efficiency
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- possibility of installation on a DIN rail (using adapters)
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 112,30 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRQ-65Bswitching power supply 65W 5V, 12V,-5V,-12VOut of stock Garanție: 112,30 RON138,13 RONIntră în cont pentru a vedea prețurile RQ-65Bswitching power supply 65W 5V, 12V,-5V,-12VDisponibilitate: Out of stockPreț net:112,30 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRQ-65Cswitching power supply 65W 5V, 15V,-5V,-15VOut of stock Garanție: 112,30 RON138,13 RONIntră în cont pentru a vedea prețurile RQ-65Cswitching power supply 65W 5V, 15V,-5V,-15VDisponibilitate: Out of stockPreț net:112,30 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRQ-65Dswitching power supply 65W 5V, 12V, 24V,-12VOut of stock Garanție: 112,30 RON138,13 RONIntră în cont pentru a vedea prețurile RQ-65Dswitching power supply 65W 5V, 12V, 24V,-12VDisponibilitate: Out of stockPreț net:112,30 RON
Descriere

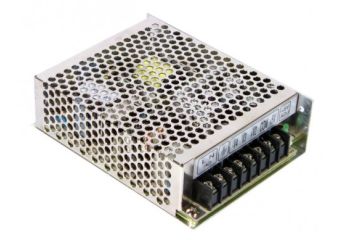

MEAN WELL RQ-65 has as many as 4 different output voltages (both positive and negative), so it can be used in many unusual industrial and telecommunications applications.
Specificație tehnică
- RQ-65: Enclosed 4-output power supply 63~68W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| RQ-65B | 5V, 0.5~8.0A 12V, 0.2~1.5A -5V, 0.0~1.0A -12V, 0.0~1.0A |
+/-2% +7%, -5% +/-5% +/-5% |
80mV 120mV 80mV 80mV |
76% | 63W | 129x98x38mm |
| RQ-65C | 5V, 0.5~8.0A 15V, 0.2~3.0A -5V, 0.0~1.0A -15V, 0.0~1.0A |
+/-2% +8%, -4% +/-5% +/-5% |
80mV 120mV 80mV 80mV |
76% | 65W | 129x98x38mm |
| RQ-65D | 5V, 0.5~8.0A 12V, 0.2~3.0A 24V, 0.1~1.5A -12V, 0.0~1.0A |
+/-2% +/-6% +7%,-8% +/-5% |
80mV 120mV 180mV 80mV |
78% | 68W | 129x98x38mm |
