LRS-150

Enclosed power supply: LRS-150-12, LRS-150-15, LRS-150-24, LRS-150-36, LRS-150-48

Producător: MEAN WELL
Producător: MEAN WELL
  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 second
  • No load power consumption<0.5W
  • Miniature size and IU low profile
  • High operating temperature up to 70ºC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Compliance to IEC/EN 60335-1 (PD3) and lEC/EN61558-1, 2-16 for household appliances
  • Operating altitude up to 5000 meters
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • LED indicator for power on
  • Over voltage category III
  • 100% full load burn-in test
Preț de la 86,30 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 5 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

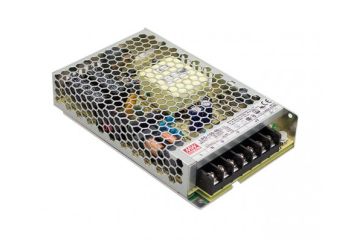

LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150 that the whole series operates from -30ºC through 70ºC under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-150 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150 series serves as a high price-to-performance power supply solution for various industrial applications.

Available models:

  • 12V: LRS-150-12
  • 15V: LRS-150-15
  • 24V: LRS-150-24
  • 36V: LRS-150-36
  • 48V: LRS-150-48


Specificație tehnică

LRS-150: 150-158.4W DETAILS

Model Wyjście Tolerancja Zakłócenia Wydajność Wymiary
LRS-150-12 12V, 0~12.5A +/-1% 150mV 87.5% 159x97x30mm
LRS-150-15 15V, 0~10A +/-1% 150mV 89% 159x97x30mm
LRS-150-24 24V, 0~6.5A +/-1% 200mV 89% 159x97x30mm
LRS-150-36 36V, 0~4.3A +/-1% 200mV 89% 159x97x30mm
LRS-150-48 48V, 0~3.3A +/-1% 200mV 90% 159x97x30mm
