Producător: MEAN WELL
- Compact dimensions
- Input voltage range 90~264VAC
- Built-in PFC function
- Control using an external controller
- Cooling with open air circulation
- Possibility of 5-second overload up to 200% power
- Short-circuit and overcurrent protection
- Built-in temperature and input voltage sensor
- Permissible operating temperature range -30~70°C
- 3 years warranty
Preț de la 218,40 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
VFD-250P-230
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareVFD-250P-230variable frequency drive 250W 90~264VAC/0~240VOut of stock Garanție: 218,40 RON268,63 RONIntră în cont pentru a vedea prețurile VFD-250P-230variable frequency drive 250W 90~264VAC/0~240VDisponibilitate: Out of stockPreț net:218,40 RON
Descriere

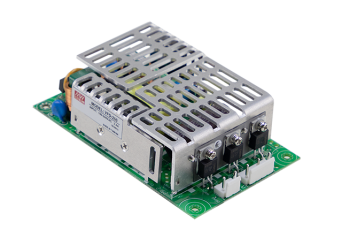

VFD-250P-230 is an inverter module designed to control an external PWM controller. The input voltage range is 90~264VAC and the output voltage range is 0~240V. Thanks to its high efficiency, compact design and convection cooling, the module is perfect for installation inside the end device. The device has the ability to overload for 5 seconds to 200% of the rated power. VFD-250P-230 is dedicated to driving BLDC and induction motors and SynRM solutions.
Specificație tehnică
- VFD-250P-230: SPECIFICATION
| Model | Input | Output | Output freq. | Efficiency | DImensions |
| VFD-250P-230 | 90~264VAC | 0~240V, 1.6A | 2.5kHz~15kHz | 91.5% | 127x76.2x35mm |
