Producător: MEAN WELL
- Compact dimensions
- Input voltage range 20~55VDC
- Control using an external controller
- Cooling with open air circulation
- Possibility of 5-second overload up to 200% power
- Short-circuit and overcurrent protection
- Built-in temperature and input voltage sensor
- Permissible operating temperature range -30~70°C
- 3 years warranty
Preț de la 102,40 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
VFD-250P-48
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareVFD-250P-48variable frequency drive 250W 20~55VDC/0~34VOut of stock Garanție: 102,40 RON125,95 RONIntră în cont pentru a vedea prețurile VFD-250P-48variable frequency drive 250W 20~55VDC/0~34VDisponibilitate: Out of stockPreț net:102,40 RON
Descriere

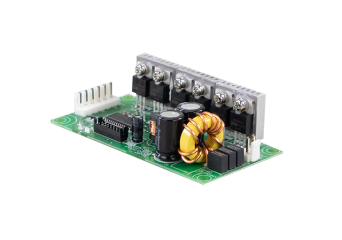

VFD-250P-48 is an inverter module designed to control an external PWM controller. The input voltage range is 20~55VDC and the output voltage is 0~34V. Thanks to its high efficiency, compact design and convection cooling, the module is perfect for installation inside the end device. The device has the ability to overload for 5 seconds to 200% of the rated power. VFD-250P-48 is dedicated to driving BLDC and induction motors and SynRM solutions.
Specificație tehnică
- VFD-250P-48: SPECIFICATION
| Model | Input | Output | Output freq. | Efficiency | Dimensions |
| VFD-250P-48 | 20~55VDC | 0~34V, 7.2A | 2.5kHz~15kHz | 93% | 101.6x50.8x28.6mm |
