P1J DC adapters
Preț de la 2,60 RON Net
Dacă se plasează comanda până în ora 15:00, coletul va fi expediat în aceeași zi În stoc
Producător: MEAN WELL
- wide input voltage range of 90-264VAC
- Replaceable AC plugs (not included, can be purchased separately)
- no-load power consumption <0.3W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 30 ° C (up to 50 ° C at 50% load)
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleUseful products
Descriere

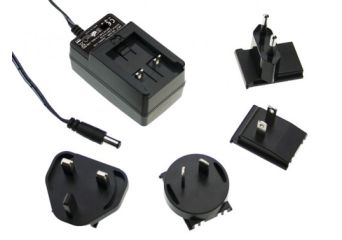

The GE18 plug-in power supply has interchangeable tips (input plugs), thanks to which it can be used in many countries around the world.
Specificație tehnică
- GE18: power supply 12~18W specification
| Model | Output | Tolerance | Noise | Efficiency | Plug | Dimensions |
| GE18I05-P1J | 5V, 0~2.4A | +/-5% | 50mV | 75% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE18I07-P1J | 7.5V, 0~1.73A | +/-5% | 75mV | 79% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE18I09-P1J | 9V, 0~2A | +/-5% | 100mV | 81% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE18I12-P1J | 12V, 0~1.5A | +/-3% | 120mV | 82% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE18I15-P1J | 15V, 0~1.2A | +/-3% | 150mV | 84% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE18I18-P1J | 18V, 0~1A | +/-3% | 180mV | 84% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE18I24-P1J | 24V, 0~0.75A | +/-3% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
| GE18I48-P1J | 48V, 0~0.375A | +/-3% | 300mV | 85% | P1J 2.1Øx5.5Øx11mm | 81x43x40.5mm |
