GEM18I
Interchangeable medical adaptor: GEM18I05-P1J, GEM18I09-P1J, GEM18I15-P1J, GEM18I18-P1J, GEM18I24-P1J, GEM18I48-P1J, GEM18I12-P1J
- Interchangeable AC plugs (plug kit sold sperately)
- Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1/ES60601-1-11, EN60601-1/EN60601-1-11
- Extremely low leakage current
- No load power consumption<0.075W
- Energy efficiency Level
- Class II power (no earth pin)
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
GEM18I
Descriere

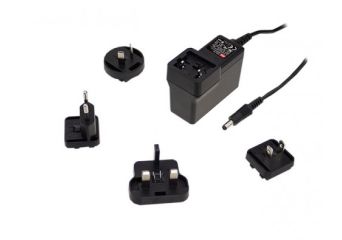

GEM18I is a highly reliable, 18W wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GEM18I is a class II power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2* MOPP), having an ultra low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients.
With the working efficiency up to 87% and the extremely low no-load power consumption below 0.075W, GEM18I is compliant with the latest USA energy regulation EISA 2007/DoE(Level VI) and EU ErP. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.
Available models:
- 5V: GEM18I05-P1J
- 9V: GEM18I09-P1J
- 12V: GEM18I12-P1J
- 15V: GEM18I15-P1J
- 18V: GEM18I18-P1J
- 24V: GEM18I24-P1J
- 48V; GEM18I48-P1J
Specificație tehnică
GEM18I: 15-18W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Plug | Dimension |
| GEM18I05-P1J | 5V, 0~3A | +/-5% | 60mV | 80% | 2.1Øx5.5Øx11mm | 75.5x39.1x56.2mm |
| GEM18I09-P1J | 9V, 0~2A | +/-5% | 60mV | 84% | 2.1Øx5.5Øx11mm | 75.5x39.1x56.2mm |
| GEM18I12-P1J | 12V, 0~1.5A | +/-3% | 80mV | 84% | 2.1Øx5.5Øx11mm | 75.5x39.1x56.2mm |
| GEM18I15-P1J | 15V, 0~1.2A | +/-3% | 80mV | 84% | 2.1Øx5.5Øx11mm | 75.5x39.1x56.2mm |
| GEM18I18-P1J | 18V, 0~1A | +/-2% | 80mV | 84% | 2.1Øx5.5Øx11mm | 75.5x39.1x56.2mm |
| GEM18I24-P1J | 24V, 0~0.75A | +/-2% | 80mV | 85% | 2.1Øx5.5Øx11mm | 75.5x39.1x56.2mm |
| GEM18I48-P1J | 48V, 0~0.38A | +/-2% | 80mV | 87% | 2.1Øx5.5Øx11mm | 75.5x39.1x56.2mm |
