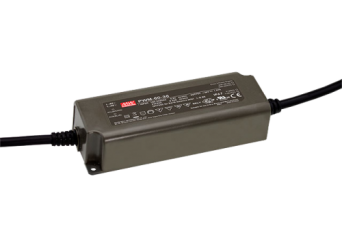

KNX LED driver PWM-60-KN
Constant voltage KNX LED power supply: PWM-60-12KN, PWM-60-24KN
- Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant lEEE1789-2015 and EU Ecodesign SVM requirement
- Min. dimming level 0.01%
- Plastic housing with class II design
- Standby power consumption<0.5W
- Integrated KNX control protocol
- No need KNX-DALI gateway
- Typical lifetime>50000 hours
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
KNX LED driver PWM-60-KN
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugarePWM-60-12KNKNX LED driver 60W 12V 5AÎn stocGaranție: 240,80 RON296,18 RONIntră în cont pentru a vedea prețurile PWM-60-12KNKNX LED driver 60W 12V 5ADisponibilitate:În stocPreț net:240,80 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugarePWM-60-24KNKNX LED driver 60W 24V 2.5AÎn stocGaranție: 240,80 RON296,18 RONIntră în cont pentru a vedea prețurile PWM-60-24KNKNX LED driver 60W 24V 2.5ADisponibilitate:În stocPreț net:240,80 RON
Descriere
PWM KN series is a 60W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.The built-in KNX interface is to avoid using the complicated KNX-DALI gateway.
PWM KN operates from 90~305VAC and offers two models with output voltage 12V and 24V.Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -35°C ~ +90°C case temperature under free air convection.
The minimal dimming level low to 0.01% is suitable for low light level applications eg. cinema. The output frequencyis changeable up to 4KHz complaint IEEE1789—2015 no risk requirement and EU Ecodesign stroboscopic visibility measure(SVM) requirement providing a great solution for health concern due to light fickering.
Available models:
- 12V: PWM-60-12
- 24V: PWM-60-24
Specificație tehnică
PWM-60-KN : 60W DETAILS
| Model | Output | Tolerance | Efficiency | Cable length | Dimension |
| PWM-60-12 | 12V, 0~5A | +/-4% | 86% | 300mm | 150x53x35mm |
| PWM-60-24 | 24V, 0~2.5A | +/-3% | 89% | 300mm | 150x53x35mm |
