- EIB / KNX power supply with integrated choke
- Compact size with 38U(52.5mm) width
- Safety extra low voltage(SELV)
- 180~264VAC input
- No load power consumption <O.5W
- Protections: Short circuit / Overload(short-circuit-proof) / Over voltage
- Cooling by free air convection
- Isolation class I
- LED indicator for normal operation, bus reset and bus overload
- Installed on DIN rail TS-35/7.5 or 15
- Over voltage category III
- 100% full load burn-in test
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale

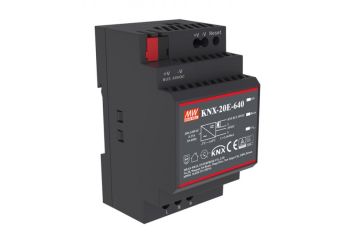

KNX-20E-640
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareKNX-20E-640KNX power supply 20W 30V 0.64AÎn stocGaranție: 356,70 RON438,74 RONIntră în cont pentru a vedea prețurile KNX-20E-640KNX power supply 20W 30V 0.64ADisponibilitate:În stocPreț net:356,70 RON
Descriere
The KNX Power Supply KNX-20E-640 is a 640mA power supply with high efficiency and a small footprint of only 3SU (52.5 mm).The device has a KNX bus choke output and an additional output for ancillary power. The -30~+70°C wide temperature operating range can meet all kinds of applications. LED indicators are used in case of normal operation,overload conditions and RESET operation. It is perfectly suitable to power up any products labeled with the KNX trademark. With over 30 years of industrial power supply experience, KNX-20E-640 is engineered to be a reliable and safe solution for KNX bus environment.
Available models:
- 30V: KNX-20E-640
Specificație tehnică
KNX-20E: 19.2WW DETAILS
| Model | Output | Ripple & noise | Efficiency | Dimension |
| KNX-20E-640 | 30V, 0,64A | 100mV | 86% | 52.5x90x54.5mm |
