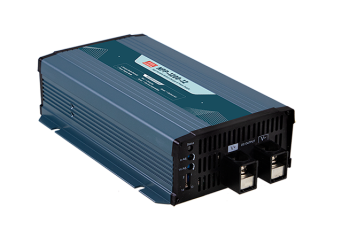

NPP-1200
Battery charger with power adapter mode: NPP-1200-12, NPP-1200-24, NPP-1200-48
- Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
- Model dedicated to lead-acid batteries
- Possibility to select the operating mode: charger / power supply
- Fan cooling
- Regulation of the output current and voltage with a potentiometer
- A wide range of acceptable operating temperatures: -30 ~ + 70 ° C
- Short-circuit, overvoltage, temperature and reverse polarity protection
- Remote on / off
- LED to indicate device status
- Compliance with EN62368, EN60335-1 / 2-29 standards
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNPP-1200-12desktop battery charger 1176W 13.8V 70AOut of stock Garanție: 1.176,20 RON1.446,73 RONIntră în cont pentru a vedea prețurile NPP-1200-12desktop battery charger 1176W 13.8V 70ADisponibilitate: Out of stockPreț net:1.176,20 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNPP-1200-24desktop battery charger 1210W 27.6V 36AÎn stocGaranție: 1.176,20 RON1.446,73 RONIntră în cont pentru a vedea prețurile NPP-1200-24desktop battery charger 1210W 27.6V 36ADisponibilitate:În stocPreț net:1.176,20 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNPP-1200-48desktop battery charger 1210W 55.2V 18AOut of stock Garanție: 1.176,20 RON1.446,73 RONIntră în cont pentru a vedea prețurile NPP-1200-48desktop battery charger 1210W 55.2V 18ADisponibilitate: Out of stockPreț net:1.176,20 RON
Descriere
NPP-1200 is a series of 1176 ~ 1209W chargers dedicated to lead-acid batteries. The device can work in the charger mode or as an ordinary power supply. The mode is selected by connecting or disconnecting the connector on the housing. The output current and voltage are regulated by a potentiometer on the housing. The output voltage can be adjusted in the following ranges (depending on the model): 10.5 ~ 21V, 21 ~ 42V or 42 ~ 80VDC.
The device is overvoltage and temperature protected. The acceptable operating temperature range is: -30~+70°C.
Application examples:
- Vehicle battery charging
- Power backup systems
- Power supply for industrial automation devices
Specificație tehnică
- NPP-1200: Battery charger with power adapter mode 1176~1209W - SPECIFICATION
| Model | Output | Efficiency | Connection | Dimensions |
| NPP-1200-12 | 12V, 70A | 92% | screw terminal | 250x158x67mm |
| NPP-1200-24 | 24V, 36A | 93% | screw terminal | 250x158x67mm |
| NPP-1200-48 | 48V, 18A | 94% | screw terminal | 250x158x67mm |
