IDLC-25
Constant current LED power supply: IDLC-25-350, IDLC-25-500, IDLC-25-700, IDLC-25-1050
Producător: MEAN WELL
Producător: MEAN WELL
- Constant Current mode output
- Flicker free design
- Plastic housing with Class II design
- Built-in active PFC function
- No load power consumption<0.5W(Blank-Type)
- Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
IDLC-25
Descriere

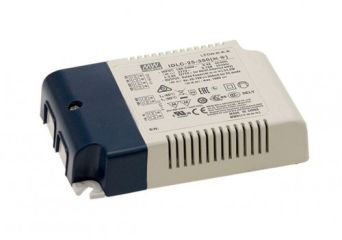

IDLC-25 series is a 25W LED AC/DC driver featuring the constant current mode output with flicker free design. IDLC-25 operates from 90-295VAC and offers models with different rated current ranging between 350mA and 1050mA. Thanks to the efficiency up to 82%, with the fanless design, the entire series is able to operate for -20°C~+90°C case temperature under free air convection. IDLC-25 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.
Available models:
- 350mA: IDLC-25-350
- 500mA: IDLC-25-500
- 700mA: IDLC-25-700
- 1050mA: IDLC-25-1050
Specificație tehnică
IDLC-25: 25W DETAILS
| Model | Output | Tolerance | Efficiency | Dimension |
| IDLC-25-350 | 49~70V, 350mA | +/-5% | 82% | 110x75x22mm |
| IDLC-25-500 | 35~50V, 500mA | +/-5% | 81.5% | 110x75x22mm |
| IDLC-25-700 | 25~36V, 700mA | +/-5% | 81.5% | 110x75x22mm |
| IDLC-25-1050 | 16.8~24V, 1050mA | +/-5% | 80% | 110x75x22mm |
