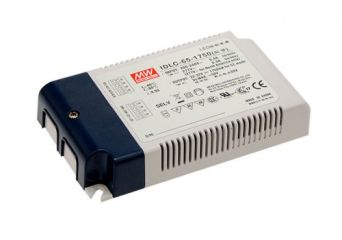

IDLC-65
Constant current LED power supply: IDLC-65-700, IDLC-65-1050, IDLC-65-1400, IDLC-65-1750
Producător: MEAN WELL
Producător: MEAN WELL
- Constant Current mode output
- Flicker free design
- Plastic housing with class II design
- Built-in active PFC function
- No load power consumption<0.5W(Blank-Type),
- Standby power consumption<0.5W(DA-Type)
- Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
IDLC-65
Descriere
IDLC-65 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design. IDLC-65 operates from and offers models with different rated current ranging between 700mA and 1750mA. Thanks to the efficiency up to 89%, with the fanless design, the entire series is able to operate for -20°C~+85°C case temperature under free air convection. IDLC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.
Available models:
- 700mA: IDLC-65-700
- 1050mA: IDLC-65-1050
- 1400mA: IDLC-65-1400
- 1750mA: IDLC-65-1750
Specificație tehnică
IDLC-65: 65W DETAILS
| Model | Output | Tolerance | Efficiency | Dimension |
| IDLC-65-700 | 69~93V, 700mA | +/-5% | 89% | 130x75x25mm |
| IDLC-65-1050 | 46~62V, 1050mA | +/-5% | 87% | 130x75x25mm |
| IDLC-65-1400 | 34~46V, 1400mA | +/-5% | 86% | 130x75x25mm |
| IDLC-65-1750 | 27~36V, 1750mA | +/-5% | 86% | 130x75x25mm |
