RPD-75

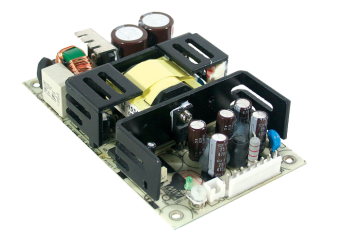

2-output medical power supplies, PCB Open Frame type, with PFC function: RPD-75A, RPD-75B
Producător: MEAN WELL
Producător: MEAN WELL
- input voltage 90-264VAC 120-370VDC
- protections: short circuit, overvoltage and overload protection
- adjustable output voltage in the range of -5 ~ + 10%
- cooling with open air circulation
- working temperature -20 ~ + 70 ° C
- Class B EMI
- compliance with medical standards
- low leakage current
- small size
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 121,20 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRPD-75Aopen frame power supply 75W 5V, 12VOut of stock Garanție: 121,20 RON149,08 RONIntră în cont pentru a vedea prețurile RPD-75Aopen frame power supply 75W 5V, 12VDisponibilitate: Out of stockPreț net:121,20 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRPD-75Bopen frame power supply 75W 5V, 24VOut of stock Garanție: 121,20 RON149,08 RONIntră în cont pentru a vedea prețurile RPD-75Bopen frame power supply 75W 5V, 24VDisponibilitate: Out of stockPreț net:121,20 RON
Descriere
The series of 2,3-output medical power supplies without housing is designed for use in medical applications, automation, electronics, telecommunications, etc. Compliance with medical standards guarantees a high degree of safety. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Specificație tehnică
-
RPD-75: 96~99W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension RPD-75A 5V, 1.0~9.5A
12V, 0.3~4.0A+/-2%
+/-6%80mV
120mV77% 96W 127x76.2x31mm RPD-75B 5V, 1.0~6.8A
24V, 0.2~2.7A+/-2%
+/-6%80mV
200mV79% 99W 127x76.2x31mm
